Power Chucks

  • HC-04

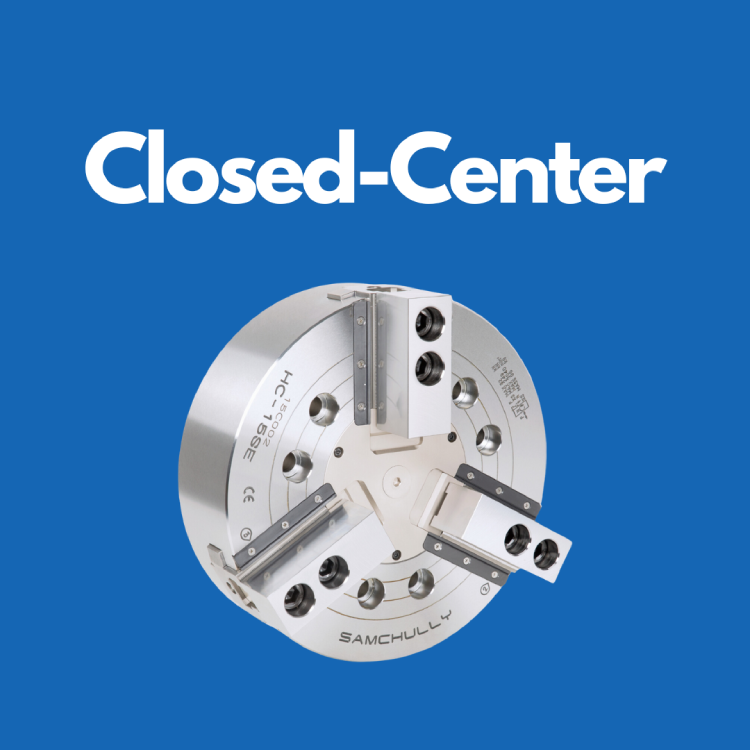

    4" 3-jaw, closed-center plain back hydraulic chuck with [M10x1.5] drawtube connector; 110mm O.D.; 8 ~ 110mm clamping range; 6.4mm jaw stroke on diameter; 14mm plunger stroke; 22.8KN maximum static gripping force; 1.5x60° master jaws serration; 6000...

    $1,120.00
    Add to Cart
  • HC-05

    5" 3-jaw, closed-center plain back hydraulic chuck with [M12x1.75] drawtube connector; 135mm O.D.; 16 ~ 135mm clamping range; 6.4mm jaw stroke on diameter; 14mm plunger stroke; 25.2KN maximum static gripping force; 1.5x60° master jaws serration; 5500...

    $1,120.00
    Add to Cart
  • HC-06

    6” 3-jaw, closed-center plain back hydraulic chuck with [M16x2.0] drawtube connector; 165mm O.D.; 19 ~ 165mm clamping range; 8.5mm jaw stroke on diameter; 18.5mm plunger stroke; 52.5KN maximum static gripping force; 1.5x60° master jaws...

    $1,190.00
    Add to Cart
  • HC-08

    8” 3-jaw, closed-center plain back hydraulic chuck with [M20x2.5] PMAX 125 drawtube connector; 210mm O.D.; 23 ~ 210mm clamping range; 8.8mm jaw stroke on diameter; 19mm plunger stroke; 75KN maximum static gripping force; 1.5x60° master jaws...

    $1,510.00
    Add to Cart
  • HC-10

    10” 3-jaw, closed-center plain back hydraulic chuck with [M20x2.5] drawtube connector; 254mm O.D.; 24 ~ 254mm clamping range; 8.8mm jaw stroke on diameter; 25mm plunger stroke; 108KN maximum static gripping force; 1.5x60° master jaws serration;...

    $1,950.00
    Add to Cart
  • HC-12

    12” 3-jaw, closed-center plain back hydraulic chuck with [M20x2.5] drawtube connector; 304mm O.D.; 26 ~ 304mm clamping range; 10.5mm jaw stroke on diameter; 30mm plunger stroke; 156KN maximum static gripping force; 1.5x60° master jaws...

    $3,895.00
    Add to Cart
  • HC-15 (sealed Closed Center)

    15” 3-jaw, sealed closed-center plain back hydraulic chuck for vertical spindle with [M30x3.5] drawtube connector; 381mm O.D.; 71 ~ 381mm clamping range; 16mm jaw stroke on diameter; 35mm plunger stroke; 249KN maximum static gripping force; 1...

    $5,230.00
    Add to Cart
  • HC-18 (Seal Closed Center)

    18” 3-jaw, sealed closed-center plain back hydraulic chuck for vertical spindle with [M30x3.5] drawtube connector; 450mm O.D.; 133 ~ 450mm clamping range; 16mm jaw stroke on diameter; 35mm plunger stroke; 249KN maximum static gripping force; 1...

    $7,125.00
    Add to Cart
  • HC-21 (Sealed Closed Center)

    21” 3-jaw, sealed closed-center plain back hydraulic chuck for vertical spindle with [M30x3.5] drawtube connector; 530mm O.D.; 62 ~ 530mm clamping range; 16mm jaw stroke on diameter; 35mm plunger stroke; 273KN maximum static gripping force; 3...

    $9,140.00
    Add to Cart
  • HC-24 (Sealed Closed Center)

     24” 3-jaw, sealed closed-center plain back hydraulic chuck for vertical spindle with [M30x3.5] drawtube connector; 610mm O.D.; 152 ~ 610mm clamping range; 16mm jaw stroke on diameter; 35mm plunger stroke; 273KN maximum static gripping force;...

    $10,335.00
    Add to Cart
  • HC-32

      32” 3-jaw, sealed closed-center plain back hydraulic chuck for vertical spindle with [M30x3.5] drawtube connector; 800mm O.D.; 200 ~ 800mm clamping range; 30mm jaw stroke on diameter; 38mm plunger stroke; 215KN maximum static gripping...

    $16,615.00
    Add to Cart
  • HC-32 (Tongue and Groove)

    32” 3-jaw, sealed closed-center plain back hydraulic chuck for vertical spindle with [M30x3.5] drawtube connector; 800mm O.D.; 200 ~ 800mm clamping range; 30mm jaw stroke on diameter, and 30mm manual setting feature; 38mm plunger stroke; 215KN...

    $18,275.00
    Add to Cart
