Application:
The Samchully MCH-10 Stationary Hydraulic Power Chuck is engineered for precise and secure clamping in machining center and automated cell operations. Ideal for robotic loading systems, milling fixtures, and multi-axis machining setups, the MCH-10 delivers stable, repeatable performance in both horizontal and vertical applications. It’s compatible with Samchully’s 50AH-C Air/Hydraulic Booster for seamless pneumatic-to-hydraulic operation, offering dependable holding power in compact installations.

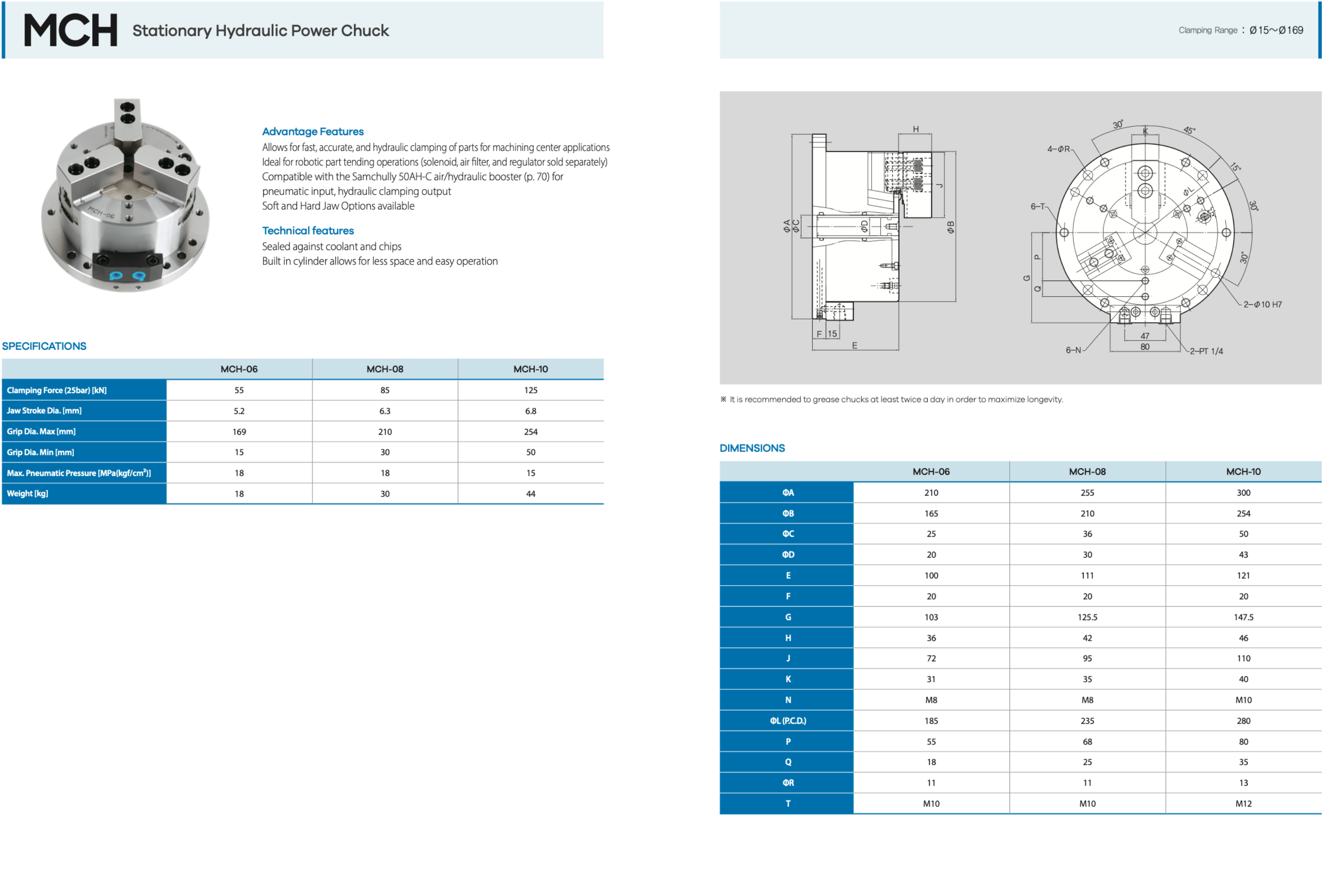

Product Features:
The MCH-10 features a built-in hydraulic cylinder that reduces installation space while maintaining powerful and consistent clamping. Its sealed construction protects against coolant and chips, extending service life and reliability. With a clamping force of 125 kN and a jaw stroke of 6.8 mm, the chuck provides accurate and repeatable gripping across a Ø50 mm to Ø254 mm clamping range. Designed for max hydraulic pressure of 25 bar (18 MPa), the MCH-10 ensures strong, vibration-free holding during demanding machining operations. Built from hardened, precision-ground components, it offers long-term durability and easy integration into fixtures, tombstones, or custom workholding systems.
