Shop Samchully for HAAS

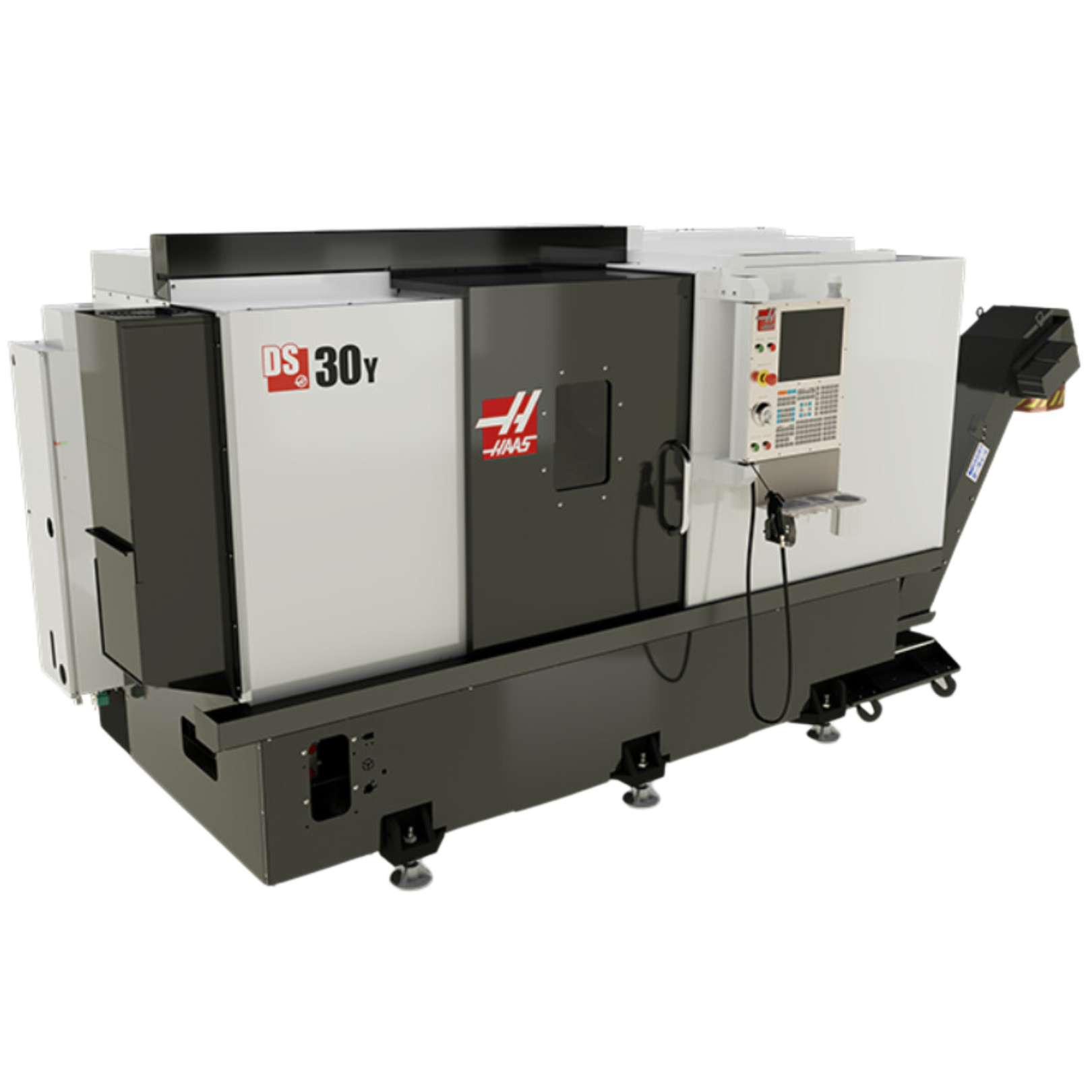

DS-30Y
The DS-30Y Y-axis turning center combines dual-spindle turning with Y axis, C axis, and live tooling to create a powerful “done-in-one” machining solution for any shop.
- Dual-spindle design for done-in-one operations
- Y-axis milling, drilling, and tapping
- Fully interpolated sub-spindle C-axis with mechanical brake
- Fully synchronized part pass-off (up to 4000 rpm)
- Ideal for high-volume, high-production environments
10" Chuck Size
3.0" Bar Capacity
4.5k RPM
30 hp Power

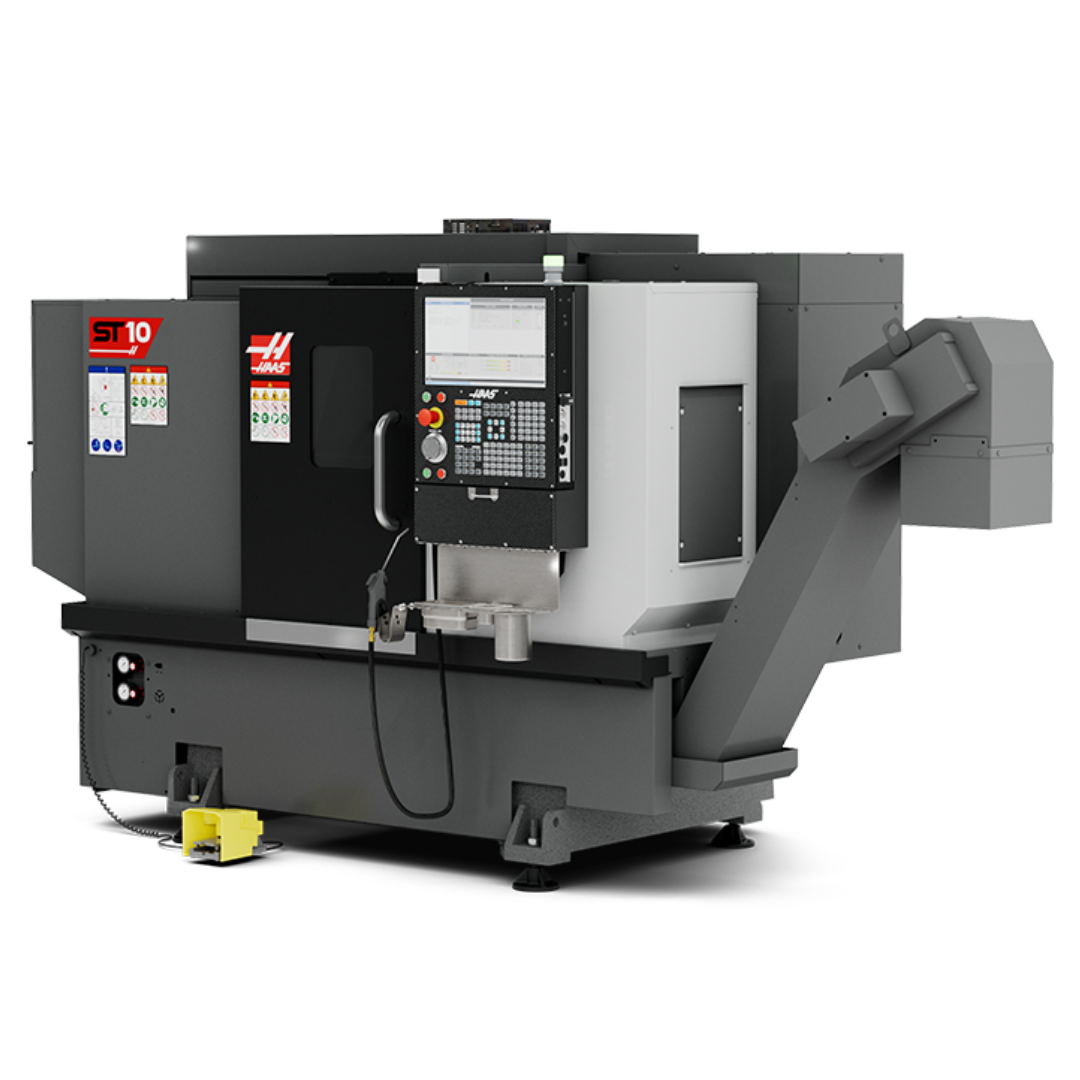

ST-10
The ST-10 packs powerful performance into an impressively compact design. Despite its small footprint, it delivers a surprisingly large work envelope—giving you more room to handle a wide range of parts while saving valuable shop floor space.
- Extra-small footprint
- High rpm and rapid speeds
- Ideal for high-volume, high-production environments
6.5" Chuck Size
1.75" Bar Capacity
6k RPM
15 hp Power

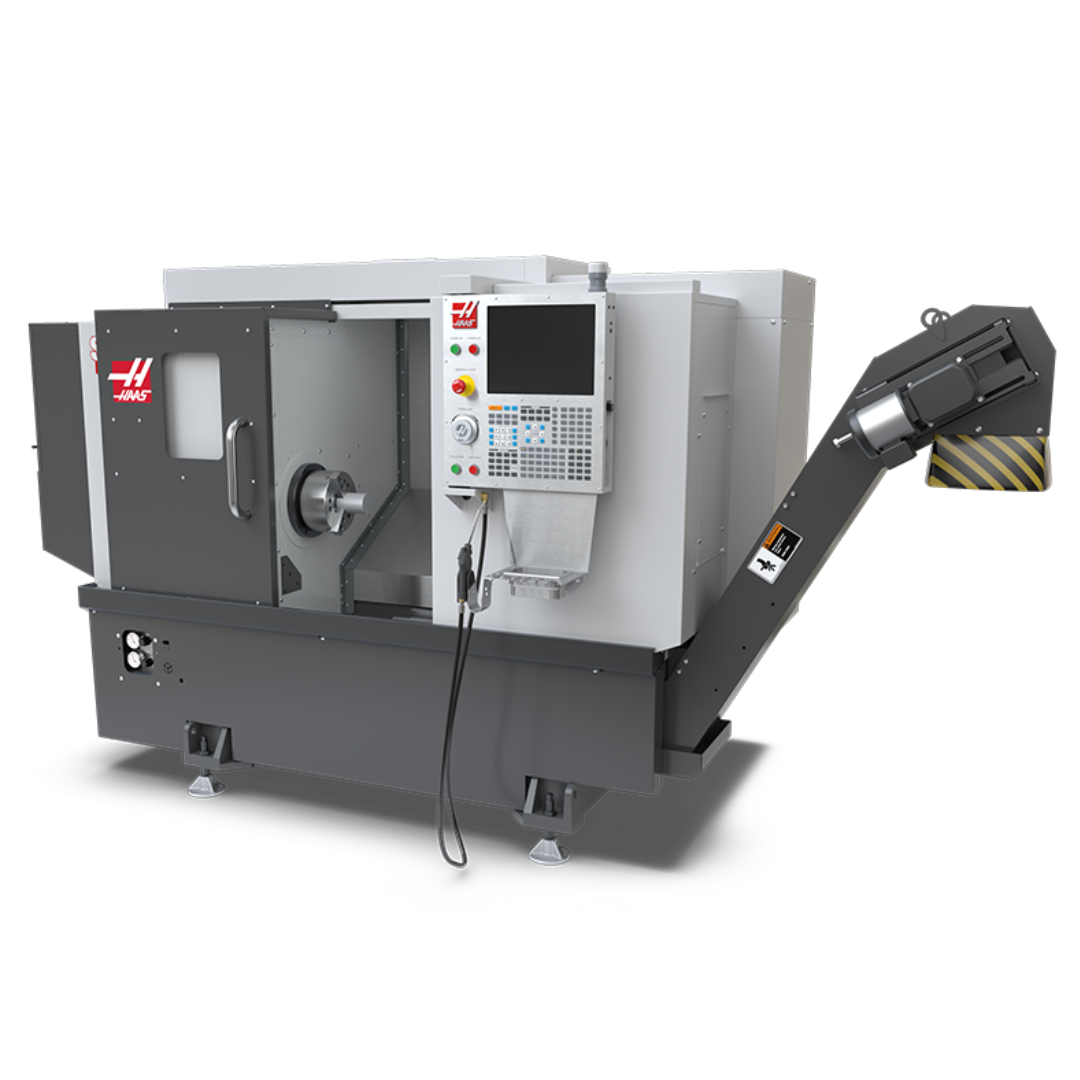

ST-15
The ST-15 is an extra-small footprint, big-bore lathe that provides a generous work envelope. This machine offers the best performance for the money – the best value – in its class.
- Larger spindle bore for increased bar capacity
- Increased Z-axis travel
- Available Auto Door
- WiFi standard
- Ideal for high-volume, high-production environments
8.3" Chuck Size
2.5" Bar Capacity
4k RPM
20 hp Power

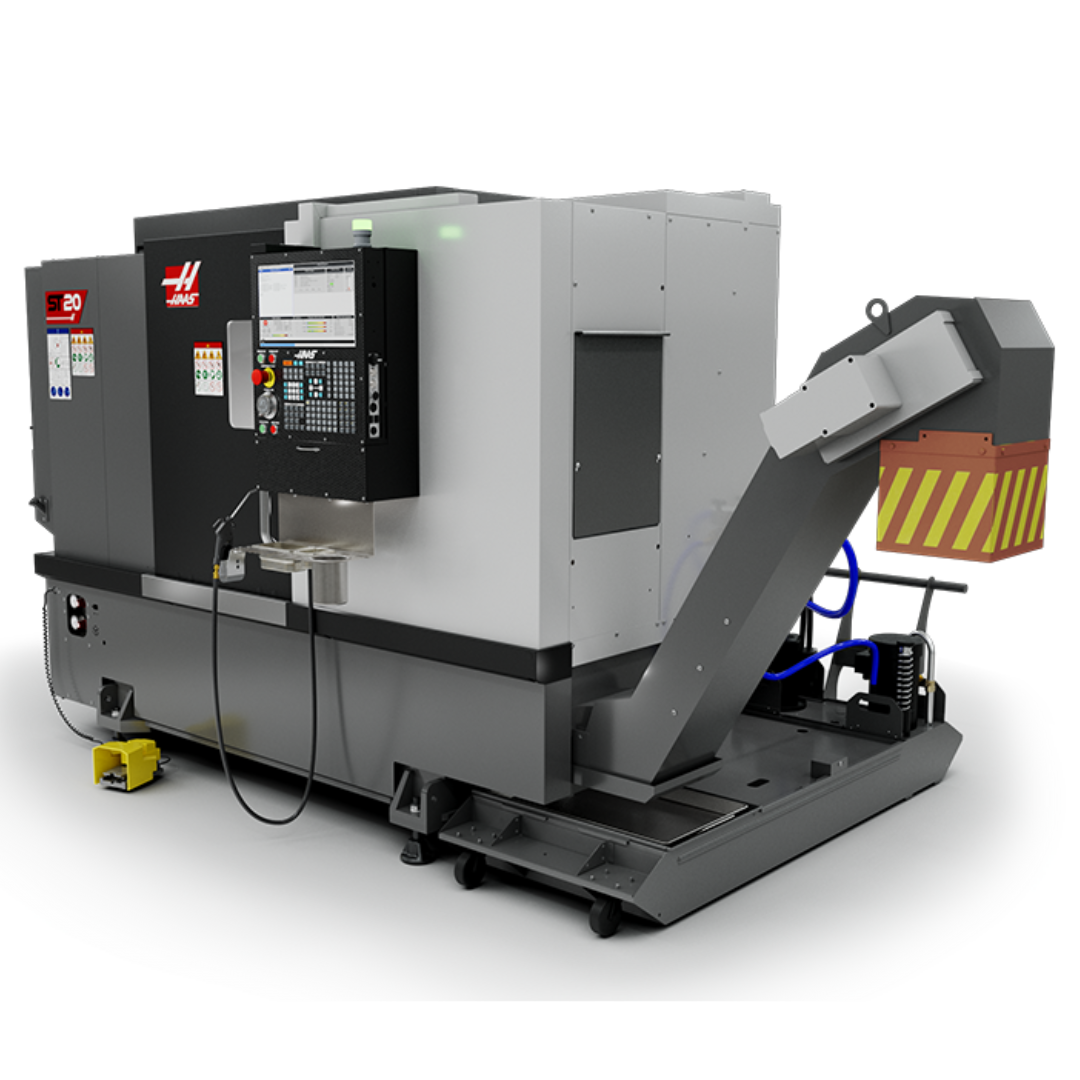

ST-20
The ST-20 is a rigid machine, with a large bar capacity, superior cutting performance, and a host of productivity-enhancing options.
- Larger spindle bore for increased bar capacity
- Increased Z-axis travel
- Available Auto Door
- WiFi standard
- Ideal for high-volume, high-production environments
8.3" Chuck Size
2.5" Bar Capacity
4k RPM
20 hp Power
ST-25
The redesigned ST-25 Series turning centers provide even more performance, features, and value than ever before. They’ve re-engineered everything – from the ground up – to create a more rigid machine, with superior cutting performance, and a host of productivity-enhancing options.
- Increased Z-axis travel
- Available Auto Door
- WiFi standard
- Ideal for high-volume, high-production environments
10" Chuck Size
3.0" Bar Capacity
3.4k RPM
30 hp Power

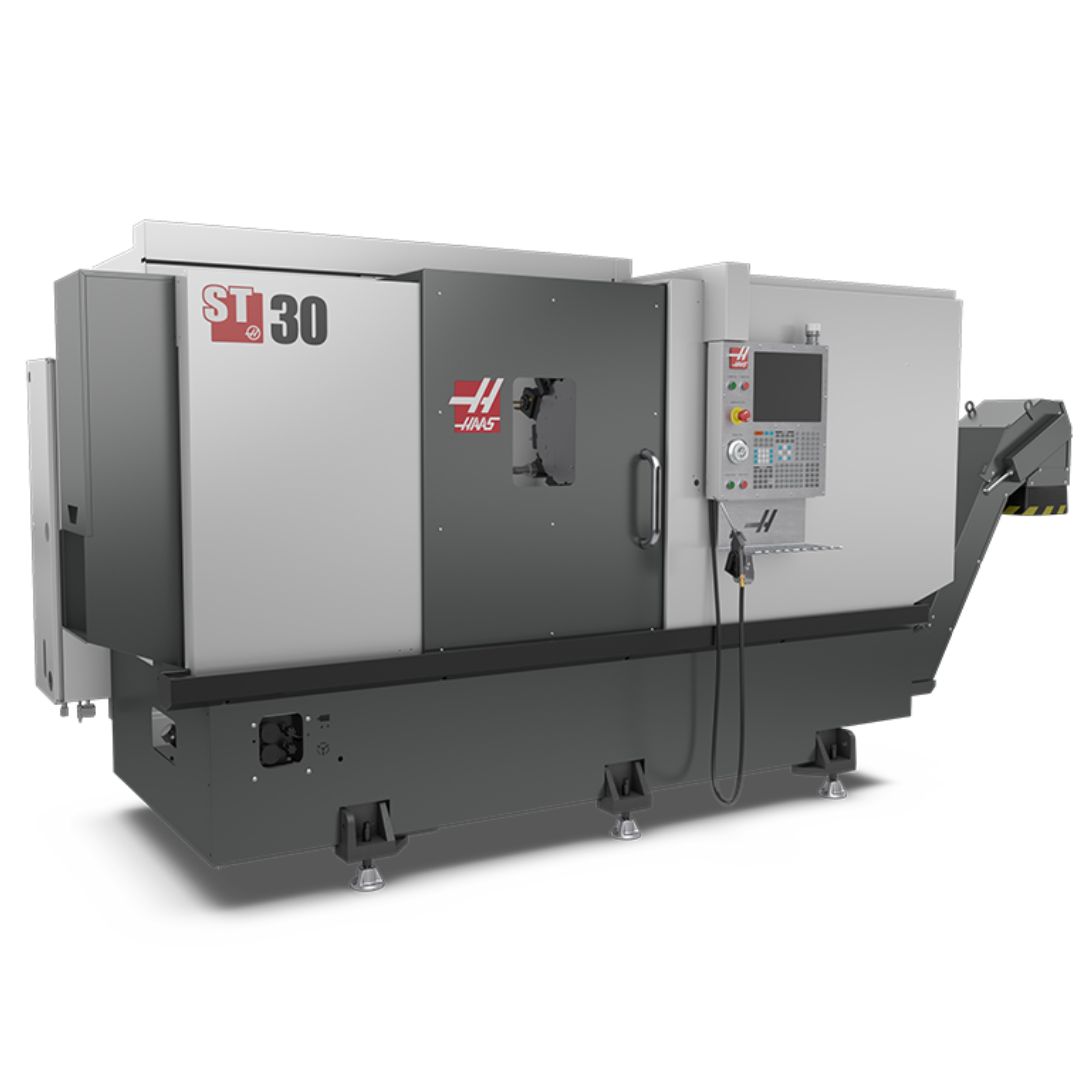

ST-30
The ST-30 has a medium footprint, and provides a generous work envelope. This machine offers the best performance for the money – the best value – in its class.
- Medium footprint
- Generous work envelope
- Ideal for high-volume, high-production environments
10" Chuck Size
3.0" Bar Capacity
3.4k RPM
30 hp Power
ST-35
The ST-35 is a mid-size big-bore lathe that has a medium footprint, yet provides a generous work envelope. This machine offers the best performance for the money – the best value – in its class.
- Medium footprint
- Big-bore spindle
- Generous work envelope
12" Chuck Size
4.0" Bar Capacity
3.2k RPM
40 hp Power

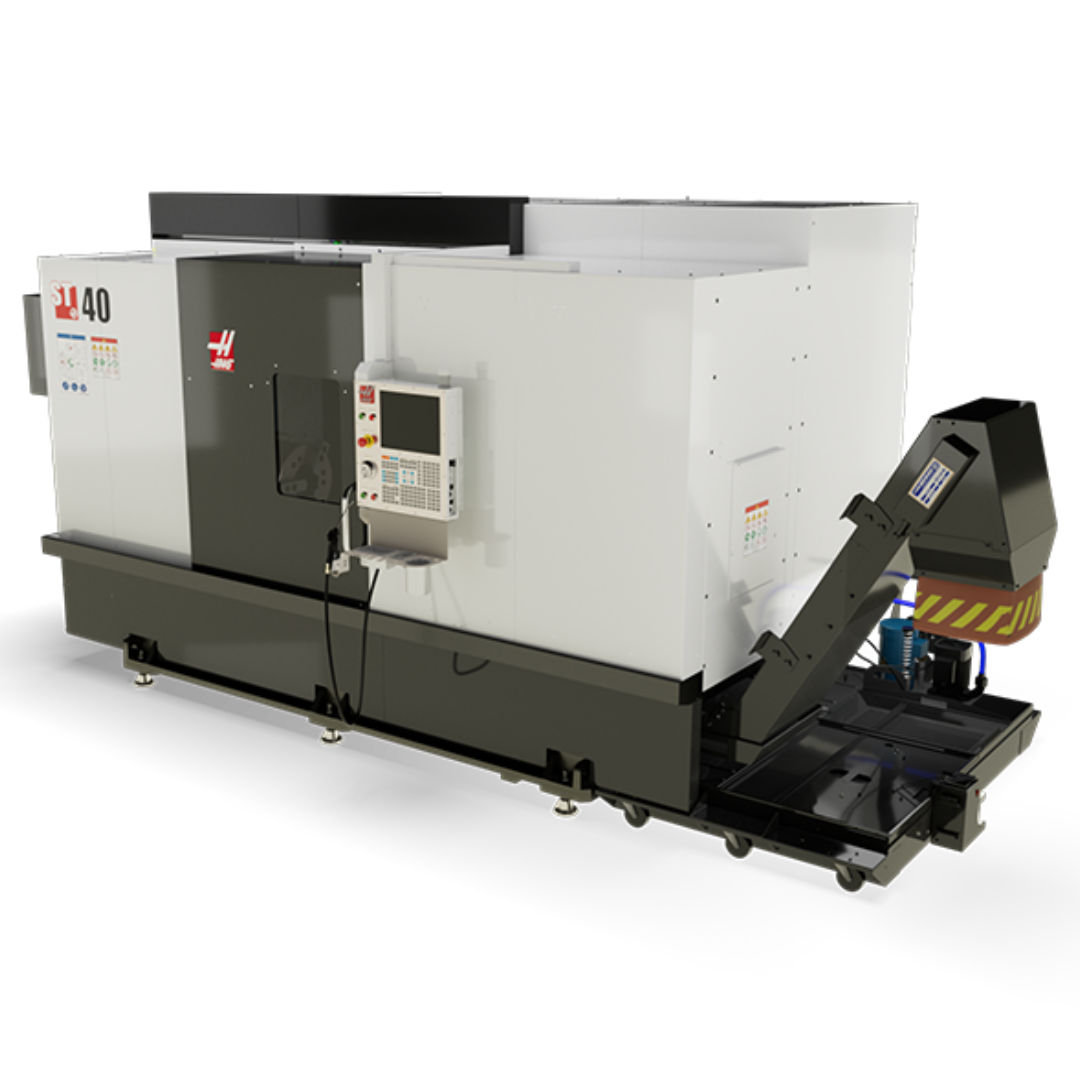

ST-40
The ST-40 is a large-frame lathe with an all-new design that provides more performance and capacity than the previous model – in a smaller footprint – while maintaining the setup flexibility, extreme rigidity, and high thermal stability.
- M2-speed gearbox
- 12-station bolt-on turret
- Powerful spindle and hydraulic chucking system
- Available rear spindle nose
15" Chuck Size
4.0" Bar Capacity
2.4k RPM
40 hp Power

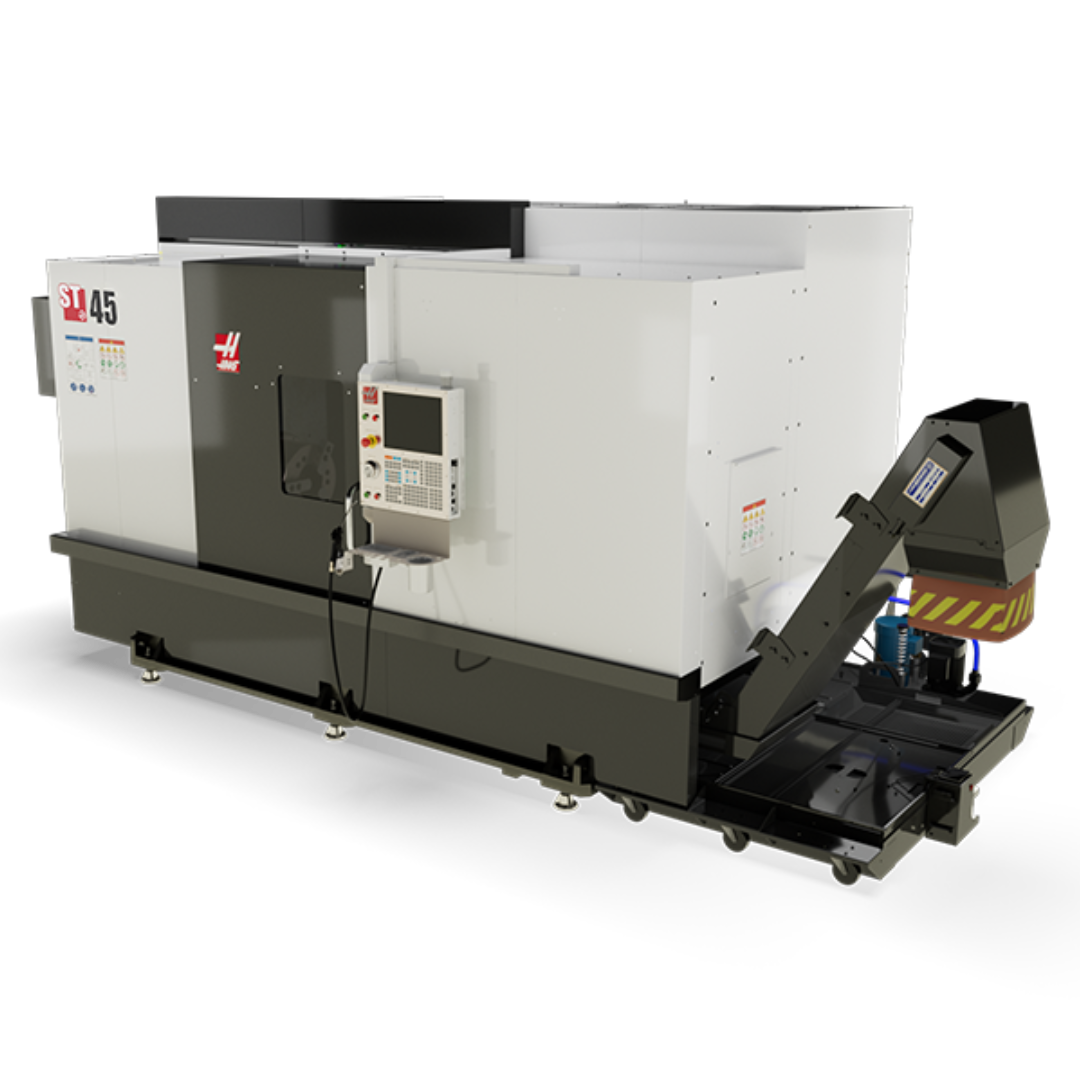

ST-45
The ST-45 is a large-frame lathe with an all-new design that provides more performance and capacity than the previous model – in a smaller footprint – while maintaining the setup flexibility, extreme rigidity, and high thermal stability.
- 12-station bolt-on turret with hydraulic clamping
- Large spindle nose and spindle bore
- 2-speed gearbox
- Available rear spindle nose
18" Chuck Size
7.0" Bar Capacity
1.4k RPM
40 hp Power
