Samchully
QJC-206 [BLANK]
6" 3-jaw, quick-jaw-change chuck; O.D. 165mm; I.D. 45mm; Max Permissible Force 30.0 kN; Max Static Gripping Force 45.0 kN; Max RPM 6000; Jaw Stroke 11.4mm on the diameter; Plunger Stroke 20.0 mm; 4.712 Tooth Pitch
Add to CartPrice $6,186.63 -
Samchully
QJC-208 [BLANK]
8" 3-jaw, quick-jaw-change chuck; O.D. 215mm; I.D. 66mm; Max Permissible Force 54.0 kN; Max Static Gripping Force 100.0 kN; Max RPM 5,500; Jaw Stroke 14.4mm on diameter; Plunger Stroke 25.0 mm; 4.712 Tooth Pitch
Choose OptionsPrice $6,917.63 -
Samchully
QJC-210 [BLANK]
10" 3-jaw, quick-jaw-change chuck; O.D. 260mm; I.D. 81mm; Max Permissible Force 65.0 kN; Max Static Gripping Force 115.0 kN; Max RPM 4000; Jaw Stroke 16.0mm on Diameter; Plunger Stroke 28.0 mm; 5.498 Tooth Pitch
Choose OptionsPrice $7,842.13 -
Samchully
QJC-212 [BLANK]
12" 3-jaw, quick-jaw-change chuck; O.D. 315mm; I.D. 104mm; Max Permissible Force 90.0 kN; Max Static Gripping Force 160.0 kN; Max RPM 3600; Jaw Stroke 16.0mm on Diameter; Plunger Stroke 28.0 mm; 5.498 Tooth Pitch
Add to CartPrice $10,744.63 -
Sold Out
Samchully
QJC-215 [BLANK]
15" 3-jaw, quick-jaw-change chuck; O.D. 400mm; I.D. 128mm; Max Permissible Force 133.0 kN; Max Static Gripping Force 240.0 kN; Max RPM 3500; Jaw Stroke 17.0mm on Diameter; Plunger Stroke 32.0 mm; 5.498 Tooth Pitch
Out of stock. Request lead time with an agent in the chatPrice $14,448.00 -
Sold Out
Samchully
QJC-220 [BLANK]
20" 3-jaw, quick-jaw-change chuck; O.D. 500mm; I.D.155mm; Max Permissible Force 120.0 kN; Max Static Gripping Force 250.0 kN; Max RPM 2200; Jaw Stroke 20.0mm on Diameter; Plunger Stroke 42.0 mm; 5.498 Tooth Pitch
Out of stock. Request lead time with an agent in the chatPrice $20,398.13

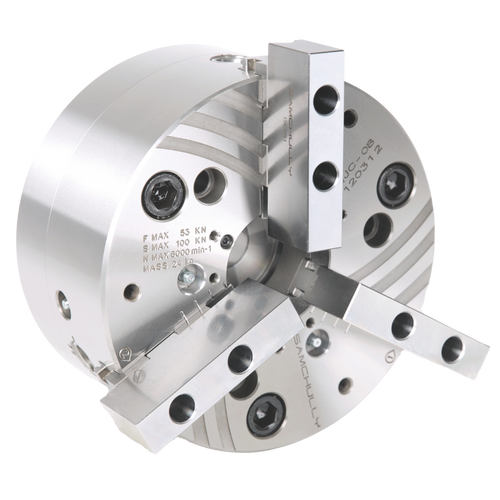

Quick Jaw Change Chucks
