Jaw Boring Chucks (NEW)

  • 6" 3-jaw jaw boring chuck, open-center plain back hydraulic chuck with Blank draw nut; 169mm O.D.; 46mm bore; 15 to 169mm clamping range ; 5.5 mm jaw stroke on diameter; 12 mm plunger stroke; 57KN maximum static gripping force; 1.5x60° master jaws serration; 6000 maximum r.p.m.

    JB-H306 [BLANK]

    6" JB Series Jaw Boring Power Chuck – 3-Jaw, Standard, Built-In Boring Ring, Precision-Enhancing Power Chuck

    Price $2,547.75
    Add to Cart

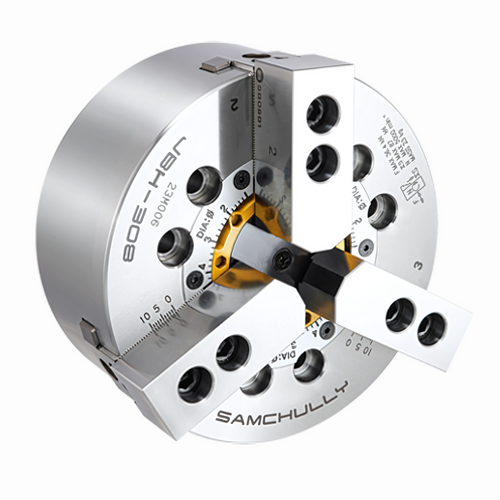

  • 8" 3-jaw jaw boring chuck, open-center plain back hydraulic chuck with Blank draw nut; 210mm O.D.; 52mm bore; 13m to 210mm clamping range; 7.4 mm jaw stroke on diameter; 16 mm plunger stroke; 86KN maximum static gripping force; 1.5x60° master jaws serration; 5000 maximum r.p.m.

    JB-H308 [BLANK]

    8" JB Series Jaw Boring Power Chuck – 3-Jaw, Standard, Built-In Boring Ring, Precision-Enhancing Power Chuck

    Price $2,692.88
    Add to Cart
  • 10" 3-jaw jaw boring chuck, open-center plain back hydraulic chuck with Blank draw nut; 254mm O.D.; 77mm bore; 254 to 30mm clamping range; 8.8 mm jaw stroke on diameter; 19 mm plunger stroke; 111KN maximum static gripping force; 1.5x60° master jaws serration; 4200 maximum r.p.m.

    JB-H310 [BLANK]

    10" JB Series Jaw Boring Power Chuck – 3-Jaw, Standard, Built-In Boring Ring, Precision-Enhancing Power Chuck

    Price $3,117.50
    Add to Cart
  • 12" 3-jaw jaw boring chuck, open-center plain back hydraulic chuck with Blank draw nut; 304mm O.D.; 91mm bore; 34mm to 304mm clamping range; 10.6 mm jaw stroke on diameter; 23 mm plunger stroke; 144KN maximum static gripping force; 1.5x60° master jaws serration; 3300 maximum r.p.m.

    JB-H312 [BLANK]

    12" JB Series Jaw Boring Power Chuck – 3-Jaw, Standard, Built-In Boring Ring, Precision-Enhancing Power Chuck

    Price $3,601.25
    Add to Cart
  • 6" 3-jaw jaw boring chuck, open-center plain back hydraulic chuck with Blank draw nut; 175mm O.D.; 52mm bore; 16.5 to 175mm clamping range ; 6.4 mm jaw stroke on diameter; 15 mm plunger stroke; 57KN maximum static gripping force; 1.5x60° master jaws serration; 6000 maximum r.p.m.

    JB-M306 [BLANK]

    6" JB Series Jaw Boring Power Chuck – 3-Jaw, Mega-Bore, Built-In Boring Ring, Precision-Enhancing Power Chuck

    Price $2,784.25
    Add to Cart
  • 8" 3-jaw jaw boring chuck, open-center plain back hydraulic chuck with Blank draw nut; 210mm O.D.; 66mm bore; 23m to 210mm clamping range; 7.4 mm jaw stroke on diameter; 16 mm plunger stroke; 87KN maximum static gripping force; 1.5x60° master jaws serration; 5000 maximum r.p.m.

    JB-M308 [BLANK]

    6" JB Series Jaw Boring Power Chuck – 3-Jaw, Mega-Bore, Built-In Boring Ring, Precision-Enhancing Power Chuck

    Price $2,956.25
    Add to Cart
  • 10" 3-jaw jaw boring chuck, open-center plain back hydraulic chuck with Blank draw nut; 254mm O.D.; 82mm bore; 254 to 30mm clamping range; 8.8 mm jaw stroke on diameter; 19 mm plunger stroke; 126.6KN maximum static gripping force; 1.5x60° master jaws serration; 4500 maximum r.p.m.

    JB-M310 [BLANK]

    10" JB Series Jaw Boring Power Chuck – 3-Jaw, Mega-Bore, Built-In Boring Ring, Precision-Enhancing Power Chuck

    Price $3,429.25
    Add to Cart
  • 12" 3-jaw jaw boring chuck, open-center plain back hydraulic chuck with Blank draw nut; 254mm O.D.; 103mm bore; 54mm to 315mm clamping range; 10.6 mm jaw stroke on diameter; 23 mm plunger stroke; 144KN maximum static gripping force; 1.5x60° master jaws serration; 3000 maximum r.p.m.

    JB-M312 [BLANK]

    12" JB Series Jaw Boring Power Chuck – 3-Jaw, Mega-Bore, Built-In Boring Ring, Precision-Enhancing Power Chuck

    Price $3,778.63
    Add to Cart
!
