Chucks

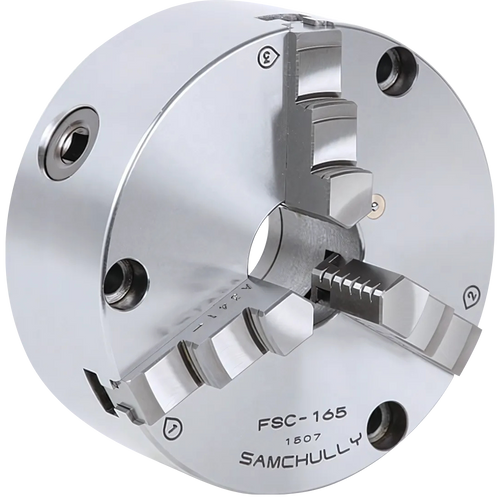

  • 7.5" 3-Jaw, front-mounting scroll chuck with solid jaws; 57mm bore; 4 ~ 180mm external clamping range on diameter; 56mm ~ 170mm internal clamping range on diameter; 31KN maximum static gripping force; 3500 max rpm; includes one set of external, and internal hard jaws with each chuck

    FSC-190

    7.5" 3-Jaw, front-mounting scroll chuck with solid jaws; 57mm bore; 4 ~ 180mm external clamping range on diameter; 56mm ~ 170mm internal clamping range on diameter; 31KN maximum static gripping force; 3500 max rpm; includes one set of external, and...

    $700.00
    Pre-Order Now
  • 11.0" 3-Jaw, front-mounting scroll chuck with solid jaws; 89mm bore; 5 ~ 260mm external clamping range on diameter; 70mm ~ 250mm internal clamping range on diameter; 46KN maximum static gripping force; 2500 max rpm; includes one set of external, and internal hard jaws with each chuck

    FSC-273

    11.0" 3-Jaw, front-mounting scroll chuck with solid jaws; 89mm bore; 5 ~ 260mm external clamping range on diameter; 70mm ~ 250mm internal clamping range on diameter; 46KN maximum static gripping force; 2500 max rpm; includes one set of external, and...

    $1,025.00
    Add to Cart
  • 6.5" 3-Jaw, rear-mounting scroll chuck with 2-piece jaws and set-rite concentricity feature; 45mm bore; 3 ~ 160mm external clamping range on diameter; 48mm ~ 150mm internal clamping range on diameter; 31KN maximum static gripping force; 4000 max rpm; includes one set of external, and internal hard jaws with each chuck

    FTC-165

    6.5" 3-Jaw, rear-mounting scroll chuck with 2-piece jaws and set-rite concentricity feature; 45mm bore; 3 ~ 160mm external clamping range on diameter; 48mm ~ 150mm internal clamping range on diameter; 31KN maximum static gripping force; 4000 max...

    $585.00
    Add to Cart
  • 7.5" 3-Jaw, front-mounting scroll chuck with 2-piece jaws; 57mm bore; 4 ~ 180mm external clamping range on diameter; 56mm ~ 170mm internal clamping range on diameter; 31KN maximum static gripping force; 3500 max rpm; includes one set of reversible hard and soft jaws

    FTC-190

    7.5" 3-Jaw, front-mounting scroll chuck with 2-piece jaws; 57mm bore; 4 ~ 180mm external clamping range on diameter; 56mm ~ 170mm internal clamping range on diameter; 31KN maximum static gripping force; 3500 max rpm; includes one set of reversible hard...

    $1,025.00
    Add to Cart
  • 9.0" 3-Jaw, front-mounting scroll chuck with 2-piece jaws; 75mm bore; 5 ~ 220mm external clamping range on diameter; 62mm ~ 210mm internal clamping range on diameter; 37KN maximum static gripping force; 2900 max rpm; includes one set of reversible hard and soft jaws

    FTC-230

    9.0" 3-Jaw, front-mounting scroll chuck with 2-piece jaws; 75mm bore; 5 ~ 220mm external clamping range on diameter; 62mm ~ 210mm internal clamping range on diameter; 37KN maximum static gripping force; 2900 max rpm; includes one set of reversible hard...

    $1,419.00
    Add to Cart
  • 11.0" 3-Jaw, front-mounting scroll chuck with 2-piece jaws; 89mm bore; 5 ~ 260mm external clamping range on diameter; 70mm ~ 250mm internal clamping range on diameter; 46KN maximum static gripping force; 2500 max rpm; includes one set of reversible hard and soft jaws

    FTC-273

    11.0" 3-Jaw, front-mounting scroll chuck with 2-piece jaws; 89mm bore; 5 ~ 260mm external clamping range on diameter; 70mm ~ 250mm internal clamping range on diameter; 46KN maximum static gripping force; 2500 max rpm; includes one set of reversible hard...

    $1,520.00
    Add to Cart
  • 12.0" 3-Jaw, front-mounting scroll chuck with 2-piece jaws; 100mm bore; 10 ~ 300mm external clamping range on diameter; 86mm ~ 290mm internal clamping range on diameter; 55KN maximum static gripping force; 2200 max rpm; includes one set of reversible hard and soft jaws

    FTC-310

    12.0" 3-Jaw, front-mounting scroll chuck with 2-piece jaws; 100mm bore; 10 ~ 300mm external clamping range on diameter; 86mm ~ 290mm internal clamping range on diameter; 55KN maximum static gripping force; 2200 max rpm; includes one set of reversible...

    $2,145.00
    Add to Cart
  • 18.0" 3-Jaw, front-mounting scroll chuck with 2-piece jaws; 190mm bore; 40 ~ 410mm external clamping range on diameter; 152mm ~ 436mm internal clamping range on diameter; 65KN maximum static gripping force; 870 max rpm; includes one set of reversible hard and soft jaws

    FTC-460

    18.0" 3-Jaw, front-mounting scroll chuck with 2-piece jaws; 190mm bore; 40 ~ 410mm external clamping range on diameter; 152mm ~ 436mm internal clamping range on diameter; 65KN maximum static gripping force; 870 max rpm; includes one set of reversible...

    $7,245.00
    Add to Cart
!
