HSF-08V1 [BLANK]

HSF-08V1 [BLANK]

Price $4,757.50
Write a Review
SKU:
HSF-08V1 [BLANK]
Shipping:
Calculated at Checkout
Includes:
Mounting Bolts; Blank Drawnut; Soft Top Jaws; Master Jaws; T-Nuts; Handle
Through-hole Dia. (mm):
52
Grip Dia. Max (mm):
210
Grip Dia. Min. (mm):
13
Jaw Stroke Dia. (mm):
7.4
Plunger Stroke (mm):
16
Max. Permissible Input Force [kN(kgf)]:
23.2(2366)
Max. Static Gripping Force [kN(kgf)]:
57.3(5843)
Max. r.pm.:
5000
Weight [kg]:
22.5
Series:
HSF
Size:
8"
Jaws:
4
Includes:
4 Jaws

Back Ordered - Chat with an agent for updated lead time.

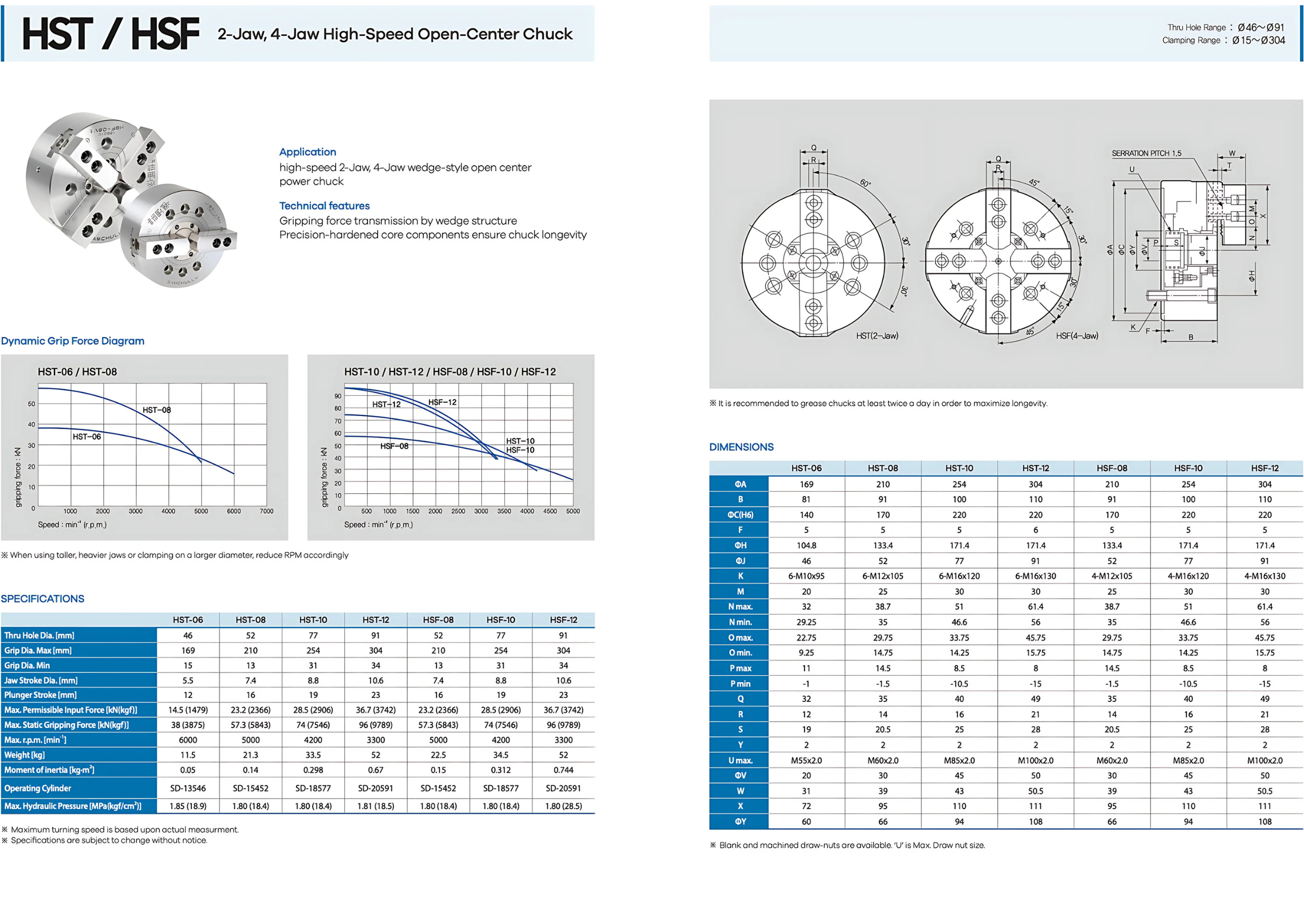

8" HSF Series Power Chuck – 4-Jaw, High-Speed, Open-Center Power Chuck

Application:

The HSF-08 is is a specialized wedge-style 4-jaw open-center power chuck engineered for high-speed and general-purpose turning applications. Whether you're working with bar-fed materials or handling shaft components, the HSF-08 delivers strong, reliable clamping across a wide range of machining environments.

Technical Features:

Featuring a rugged wedge mechanism for dependable force transmission, the HSF-08 provides consistent and secure workholding. Its open-center design enables efficient through-hole machining, ideal for bar work and long components. The chuck offers a jaw stroke of up to 7.4mm, a maximum gripping force of 57.3kN, and supports spindle speeds up to 5,000 RPM, ensuring both precision and performance at high speeds. Manufactured with precision-ground and hardened internals, the HSF-08 is built for longevity and repeatability. Compatible with standard rotary hydraulic cylinders, it easily integrates into existing CNC lathe setups.

!
