IDS-250

IDS-250

Price $11,863.50
Write a Review
SKU:
IDS-250
Shipping:
Calculated at Checkout
Includes:
Mounting Bolts;Soft Top Jaws; Master Jaws; T-Nuts; Handle
Jaw Stroke Radial. (mm):
6
Compensation (mm):
±2
Operating Cylinder:
Y-1530RE
Weight (kg):
39
Plunger Stroke (mm):
12
Max. Permissible Input Force [kN(kgf)]:
38(3875)
Max. Static Gripping Force [kN(kgf)]:
64(6526)
Max. r.pm.:
3000
Series:
IDS
Size:
10"

Back Ordered - Chat with an agent for updated lead time.

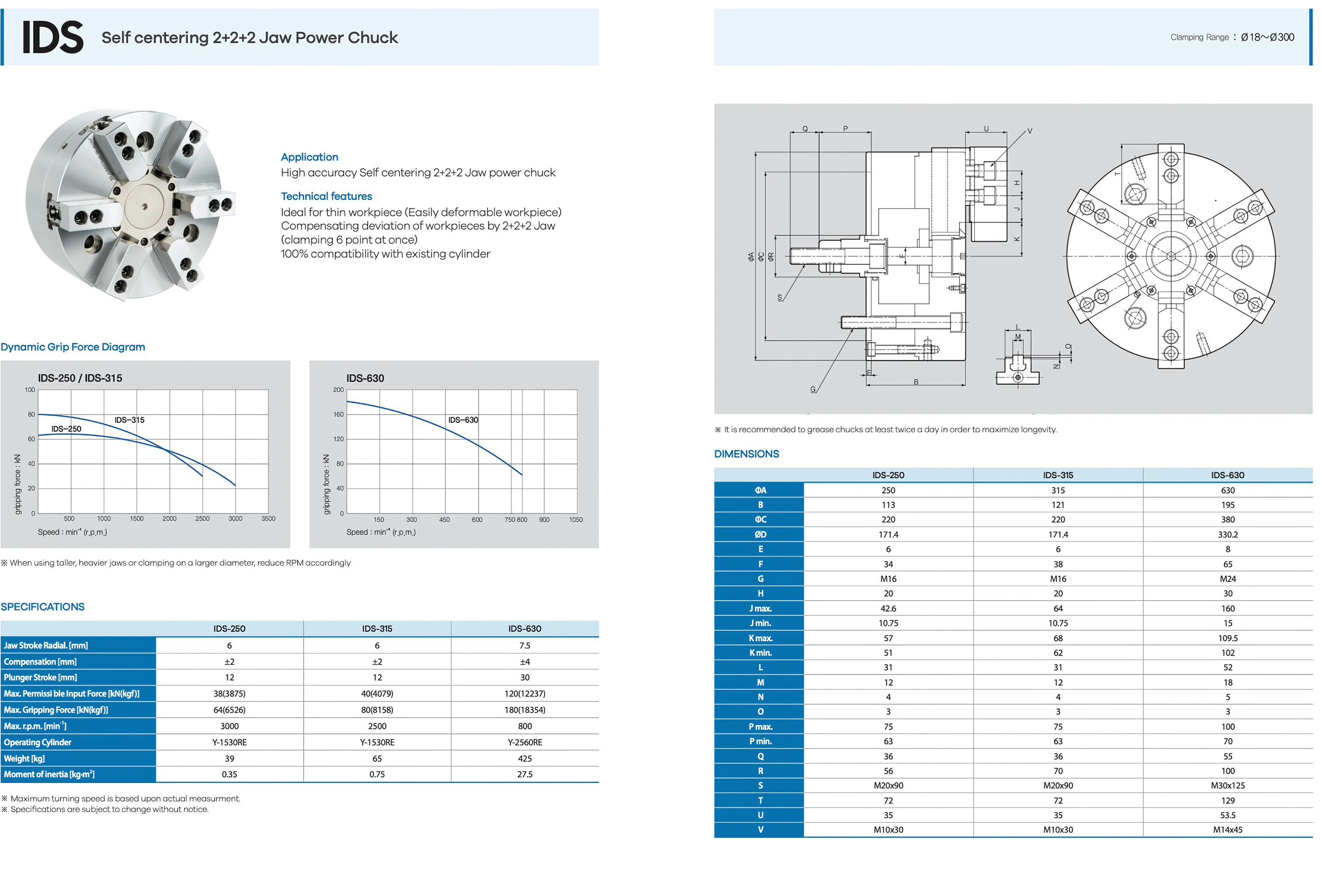

2+2+2 Compensating Power Chuck – High-Accuracy Self-Centering Chuck for Thin and Deformable Workpieces

Application:

This 2+2+2 self-centering power chuck is specifically designed for high-accuracy clamping of thin or easily deformable workpieces. Its unique jaw configuration enables six-point contact (2+2+2), allowing for even distribution of clamping pressure while maintaining precise centering. Ideal for delicate components, this chuck ensures optimal holding without compromising the integrity of the part.

Technical Features:

Featuring a radial jaw stroke of 6mm with 4mm of built-in compensation, this chuck automatically adjusts to compensate for deviations in workpiece geometry. The 12mm plunger stroke provides ample actuation range, while the maximum gripping force of 64kN delivers strong and reliable clamping performance. Designed for convenience and flexibility, it offers 100% compatibility with existing hydraulic cylinders, making it a seamless upgrade for shops seeking both performance and adaptability.

!
