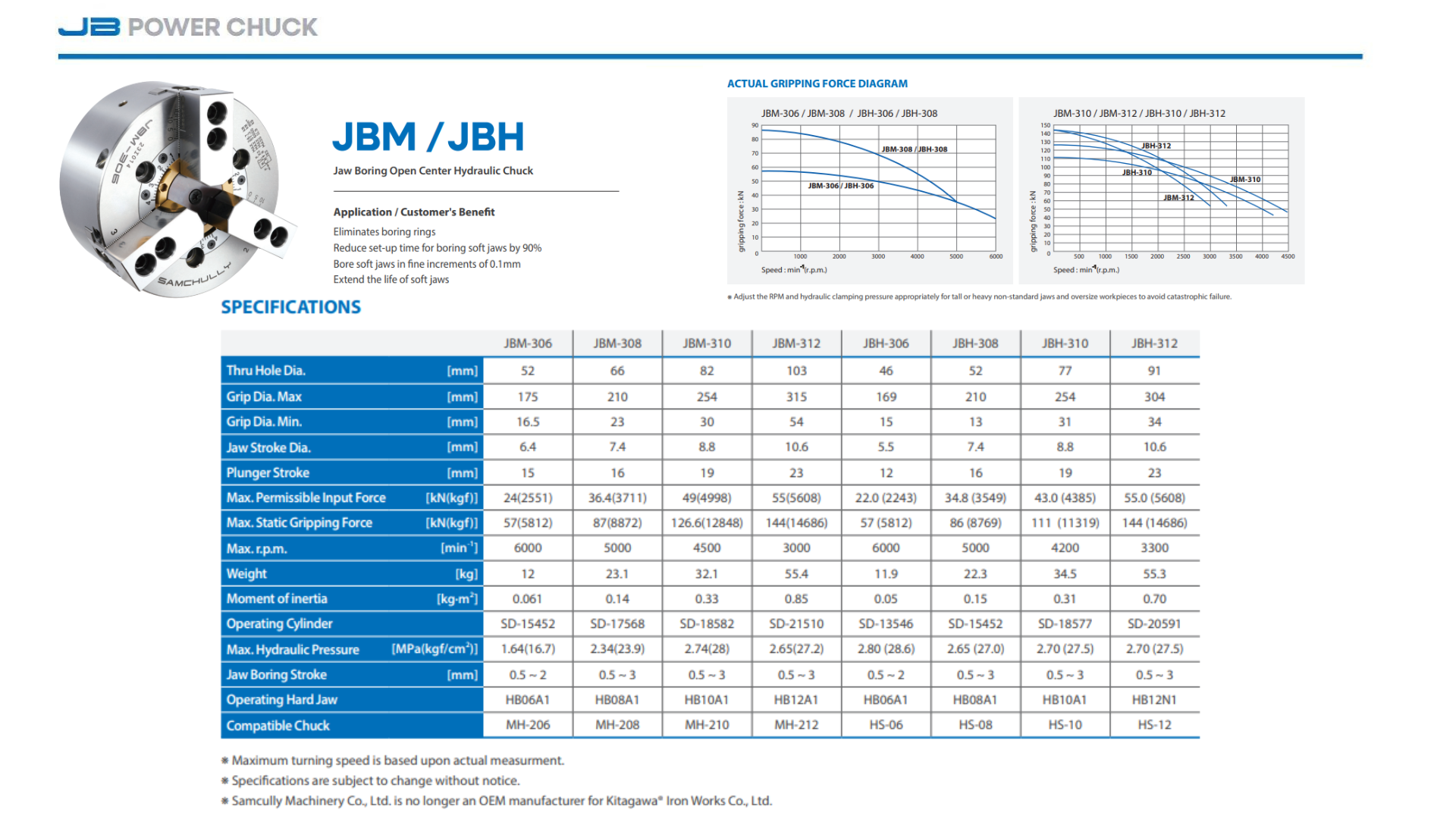

8" 3-jaw jaw boring chuck, open-center plain back hydraulic chuck with Blank draw nut; 210mm O.D.; 66mm bore; 23m to 210mm clamping range; 7.4 mm jaw stroke on diameter; 16 mm plunger stroke; 87KN maximum static gripping force; 1.5x60° master jaws serration; 5000 maximum r.p.m.

JB-M308 [BLANK]

Price $3,102.00

INTERCHANGABLE WITH: MH-208

Write a Review
SKU:
JB-M308 [BLANK]
Shipping:
Calculated at Checkout
Through-hole Dia. (mm):
66
Grip Dia. Max (mm):
210
Grip Dia. Min (mm):
23
Jaw Stroke Dia. (mm):
7.4
Plunger Stoke (mm):
16
Max. Permissible Input Force [kN(kgf)]:
36.4(3711)
Max. Static Gripping Force [kN(kgf)]:
87(8872)
Max r.p.m:
5000
Weight [kg]:
23.1
Series:
JB-M
Size:
8"
Jaws:
3
