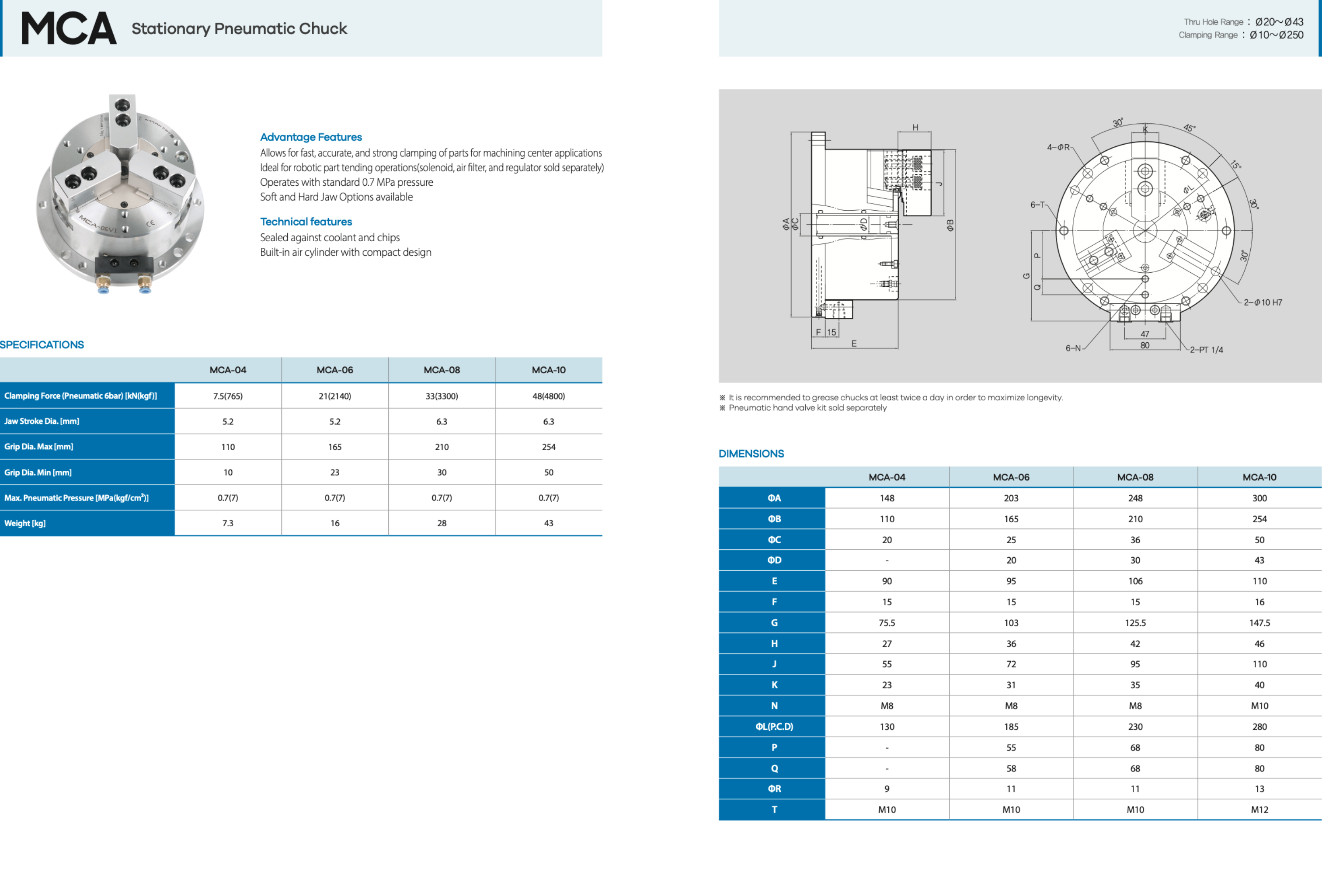

MCA-04

Application:

The Samchully MCA Stationary Pneumatic Chuck is designed for precision clamping in automated machining cells, milling fixtures, and rotary transfer systems. Its compact, low-profile design makes it ideal for integration into horizontal and vertical machining centers, as well as custom workholding setups that require repeatable, high-accuracy clamping without manual intervention.

Product Features:

The MCA-04 features a compact, low-profile design with a built-in pneumatic cylinder, eliminating the need for an external actuator and simplifying installation. It delivers a 7.5 kN clamping force with a 5.2 mm jaw stroke, providing reliable, repeatable holding across a Ø10–Ø110 mm chucking range. Built from hardened, precision-ground components, it ensures durability and consistent performance, while the flat base and multiple bolt patterns allow easy integration into fixtures, tombstones, or rotary tables.
