MHF-208V1 [BLANK]

MHF-208V1 [BLANK]

Price $5,384.50
Write a Review
SKU:
MHF-208V1 [BLANK]
Shipping:
Calculated at Checkout
Includes:
Mounting Bolts; Blank Drawnut; Soft Top Jaws; Master Jaws; T-Nuts; Handle
Through-hole Dia. (mm):
66
Grip Dia. Max (mm):
210
Grip Dia. Min. (mm):
23
Jaw Stroke Dia. (mm):
7.4
Plunger Stroke (mm):
16
Max. Permissible Input Force [kN(kgf)]:
23.25(2397)
Max. Static Gripping Force [kN(kgf)]:
57.9(5914)
Max. r.pm.:
5000
Weight [kg]:
23.5
Series:
MHF
Size:
8"
Jaws:
4
Includes:
4 Jaws

Back Ordered - Chat with an agent for updated lead time.

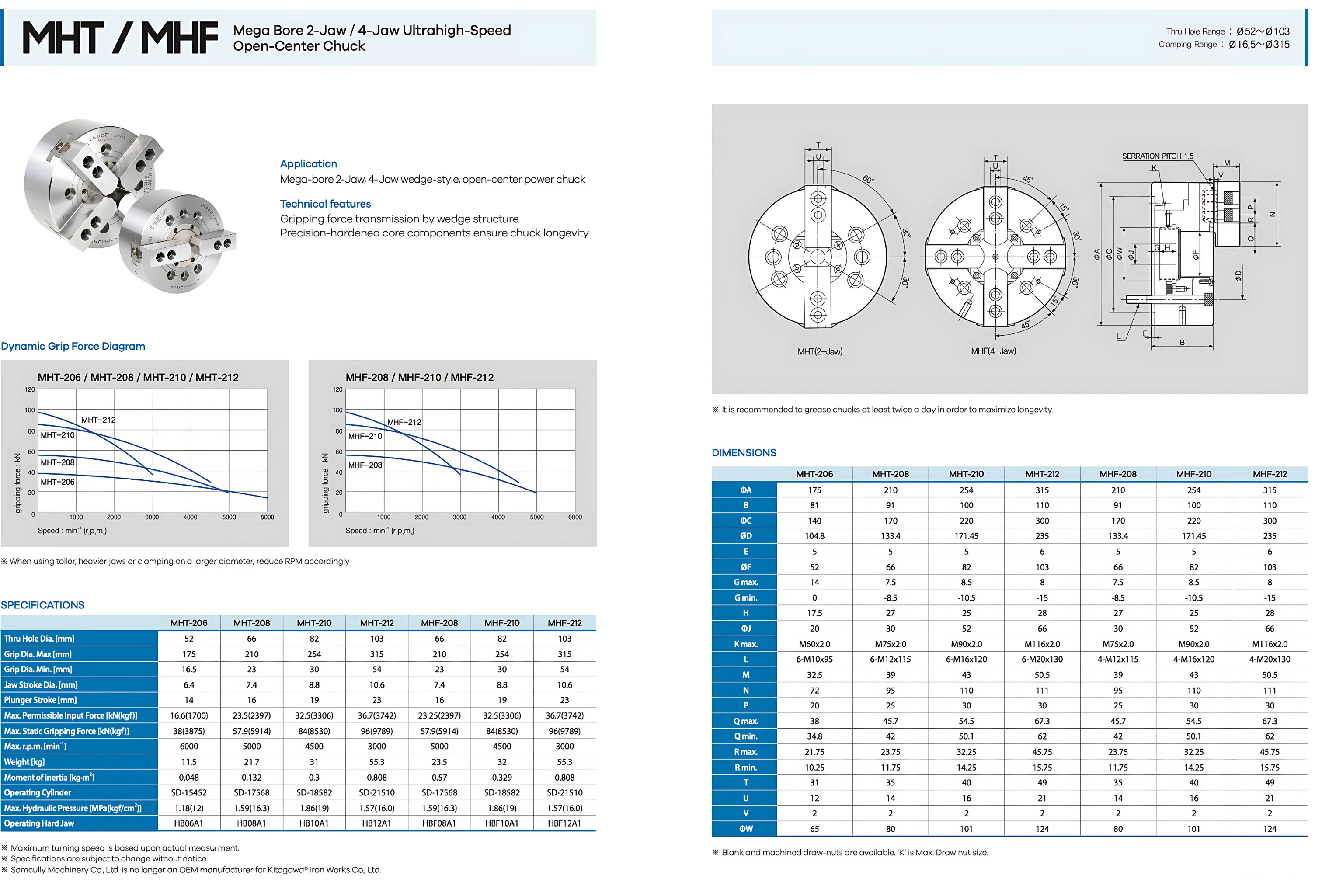

8" MHF Series Power Chuck – 4-Jaw, High-Speed, Mega-Bore Power Chuck

Application:

The MHF-208 is a 4-jaw wedge-style mega-bore chuck designed for high-speed, high-accuracy turning applications. Optimized for bar work, shaft components, and through-hole machining, the MHF Series offers versatility across various industries, including automotive, aerospace, and general machining.

Technical Features:

The MHF-208 delivers consistent clamping with minimal deformation—ideal for demanding tolerance requirements. The chuck features a jaw stroke of up to 7.4mm, a maximum gripping force of 57.9kN, and supports spindle speeds up to 5,000 RPM. Its large through-hole design allows for efficient bar feeding and part handling, while the precision-ground internals and robust construction ensure long-term accuracy and durability. Compatible with standard rotary hydraulic cylinders, the MHF-208 integrates easily into most CNC lathe setups.

!
