PBL | Universal Ball-Lock Chuck

PBL

Universal Ball-Lock Power Chuck

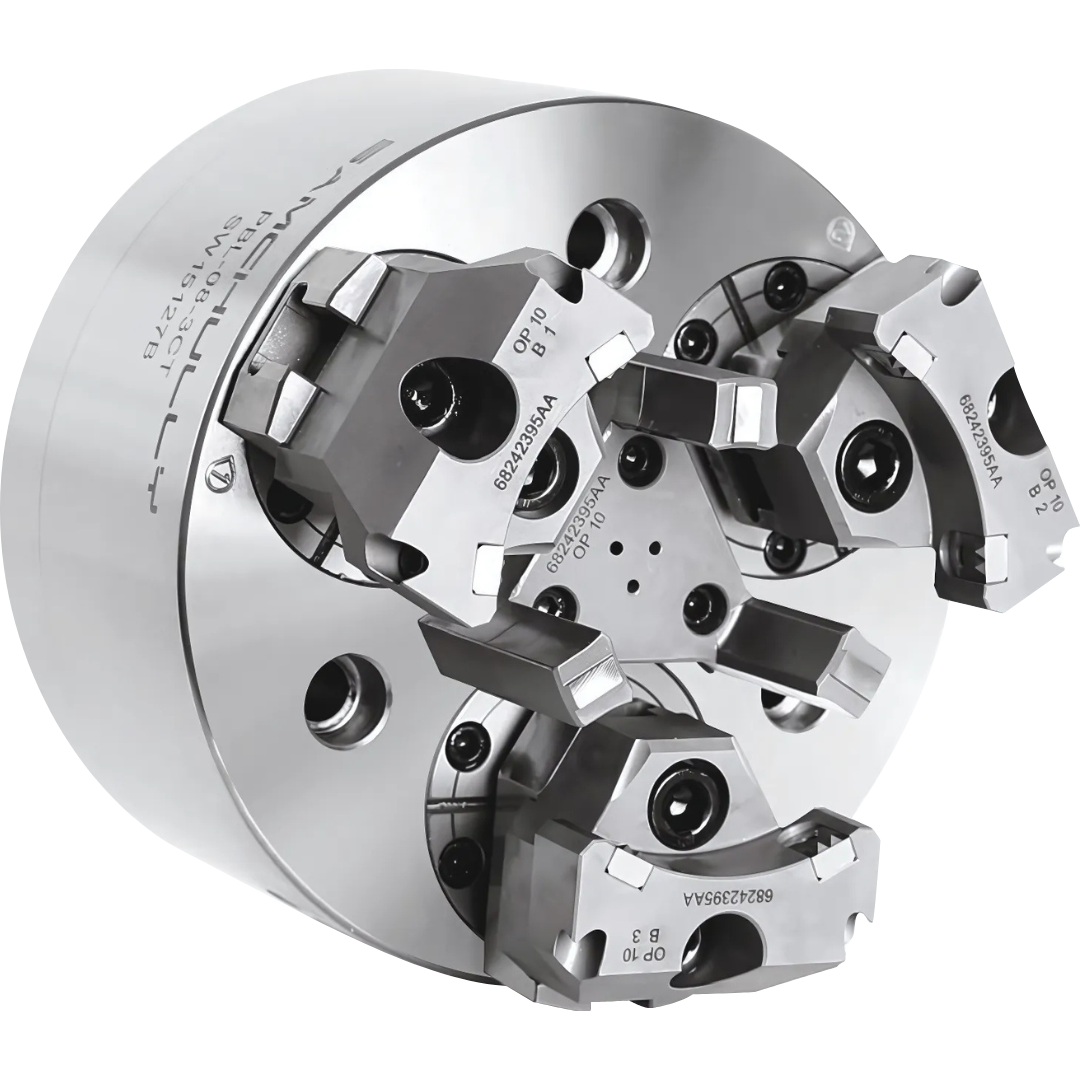

The Samchully PBL Series Universal Ball-Lock Power Chuck is designed for centralizing and compensating workholding applications, making it ideal for handling castings, forgings, and other irregularly shaped workpieces. Featuring a ball-lock mechanism, the PBL Chuck allows each jaw to pivot up to 5°, ensuring secure gripping even on uneven or tapered surfaces. This design enables both O.D. and I.D. clamping with exceptional precision and repeatability.
EGL Chuck

TECHNICAL FEATURES

Ball-Lock mechanism ensures precise centralizing for both I.D. and O.D. clamping applications.
Pivoting jaws (up to 5°) allow secure gripping on uneven or irregular casting and forging surfaces.
Capable of gripping on tapered surfaces up to 10°, providing versatility across a wide range of part geometries.
Available in sizes from 6" to 24", with multiple back plate and insert styles to match different machine interfaces and workpiece requirements.

Request a Quote

!
