DIMENSIONS

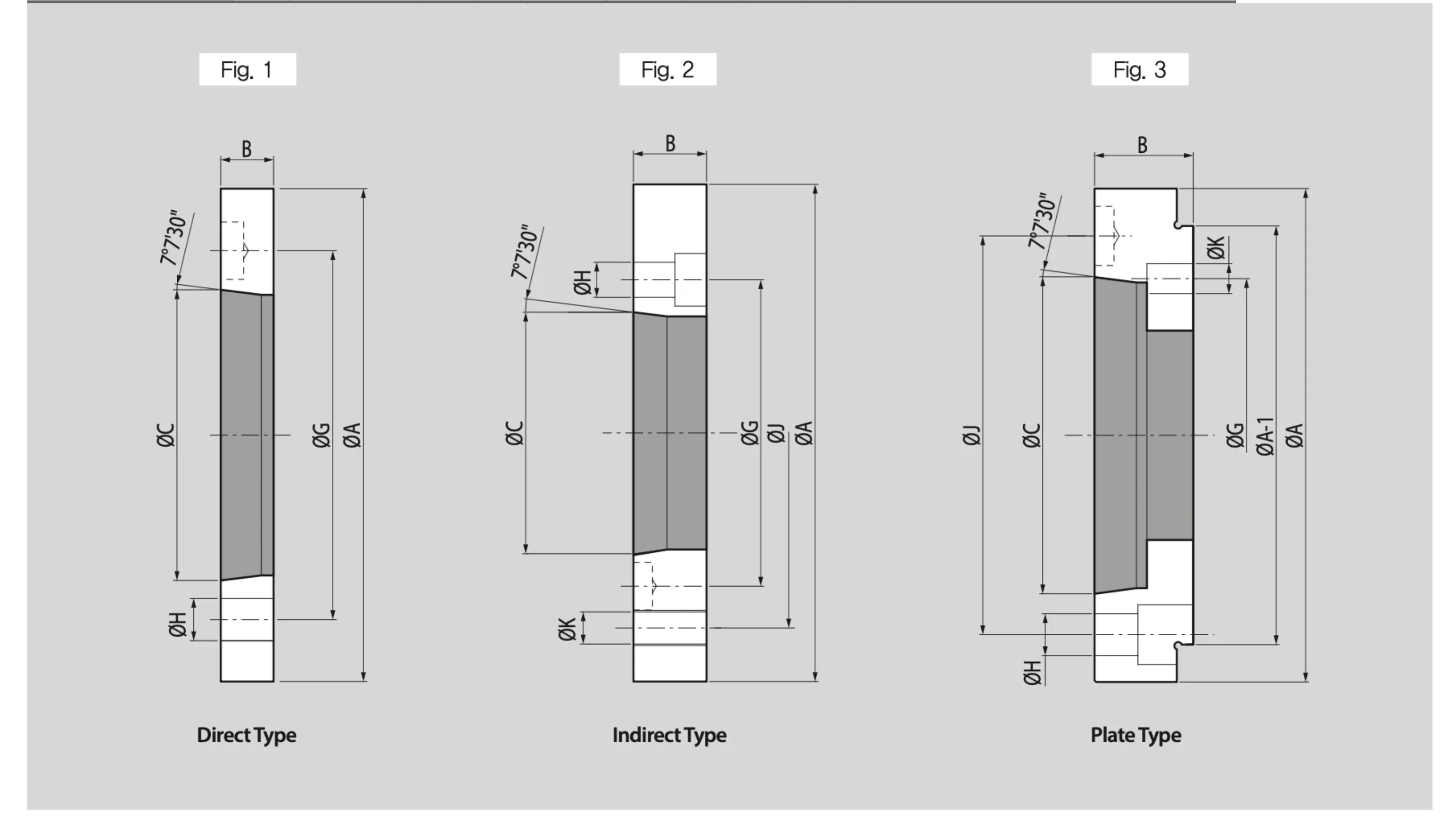

| Model | Fig. | Spindle Nose | A | B | C | G | H | J | K | Corresponding |
|---|---|---|---|---|---|---|---|---|---|---|
| AP08A05-25T | 2 | A2-5 | 170 | 25 | 82.563 | 104.78 | 12 | 133.35 | M12 | HS/HST/HSF/HSL/HCH/HC/HCT/HCF/HCL/HCLT/HCLF-08, MH/MHT/MHF-208, JBH/JBM-308 |
| AP08A06-17T | 1 | A2-5 | 170 | 17 | 106.375 | 133.35 | 13.5 | 150 | 6.6 | HS/HSL/HCH/HC/HCL-08, MH-208, JBH/JBM-308 |
| AP08A06-26T | 1 | A2-6 | 170 | 26 | 106.375 | 133.35 | 13.5 | 150 | 6.6 | HS/HSL/HCH/HC/HCL-08, MH-208, JBH/JBM-308 |
| AP08A08-30T | 3 | A2-8 | 210 | 30 | 139.719 | 171.45 | 18 | 133.35 | M12 | HS/HST/HSF/HSL/HCH/HC/HCT/HCF/HCL/HCLT/HCLF-08, MH/MHT/MHF-208, JBH/JBM-308 |
