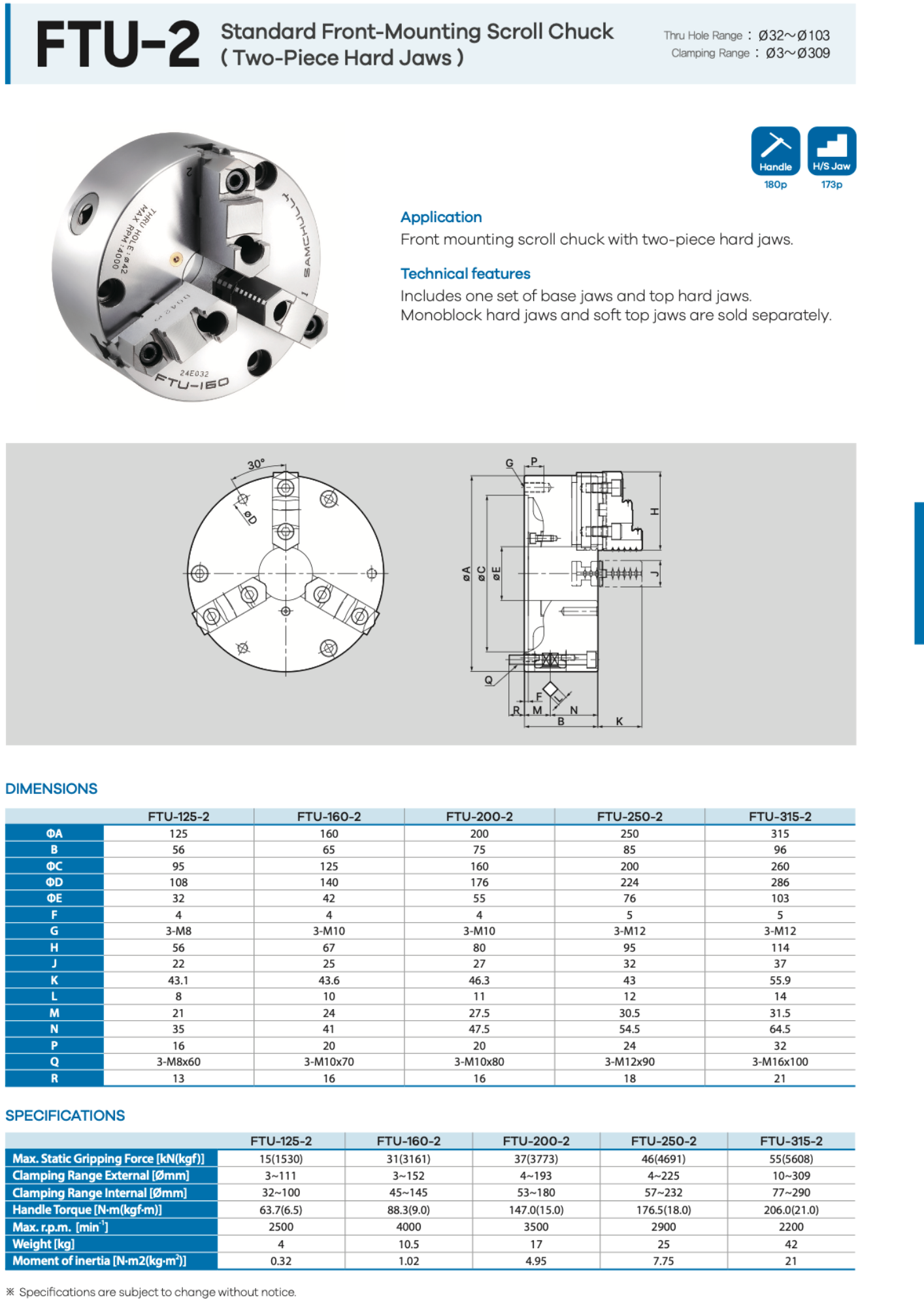

SPEC
| FTU-125-2 | FTU-160-2 | FTU-200-2 | FTU-250-2 | FTU-315-2 | |
|---|---|---|---|---|---|
| Max. Static Gripping Force [kN(kgf)] |
15(1530) | 31(3161) | 37(3773) | 46(4691) | 55(5608) |
| External [Φmm] Clamping Range |
3~110 | 3~165 | 4~190 | 5~220 | 10~300 |
| Internal [Φmm] Clamping Range |
32~100 | 45~145 | 53~180 | 57~230 | 77~290 |
| Handle Torque [N·m(kgf·m)] |
63.7(6.5) | 88.3(9.0) | 147.0(15.0) | 176.5(18.0) | 206(21.0) |
| Max. R.P.M [min-¹] |
2500 | 4000 | 3500 | 3000 | 2200 |
| Weight [kg] |
4.0 | 10.5 | 17.0 | 25.0 | 42.0 |
| Moment of Inertia [N·m2(kg·m²)] |
0.32 | 1.02 | 4.95 | 7.75 | 21.0 |
| Product Drawings |
PDF CAD 3D |
PDF CAD 3D |
PDF CAD 3D |
PDF CAD 3D |
PDF CAD 3D |
※ Product specifications can be changed without notice for product performance.
