Y-RE Series Closed-Center Hydraulic Cylinder with Proximity Switch Brackets

Y-RE Series Closed-Center Hydraulic Cylinder with Proximity Switch Brackets

Price $1,947.00 - $10,334.50
Write a Review
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

Product Features:
The Y-RE Series features a closed-center hydraulic design engineered for reliable clamping performance in CNC turning applications. Built for stable operation in high-speed machining environments, the series delivers consistent push and pull force while maintaining efficient hydraulic control. Integrated lock and relief valves help protect the system from excessive pressure and maintain clamping force during power interruptions, ensuring safe and dependable operation. Each unit is designed to support automation with proximity switch mounting brackets for stroke detection and process monitoring.

Application:

The Samchully Y-RE Series is a closed-center hydraulic cylinder designed for CNC lathes and automated machining systems requiring reliable actuation with integrated proximity switch capability. Engineered for precision, safety, and durability, it provides stable operation in high-speed environments while maintaining consistent pull force during unexpected power loss.

Product Features:

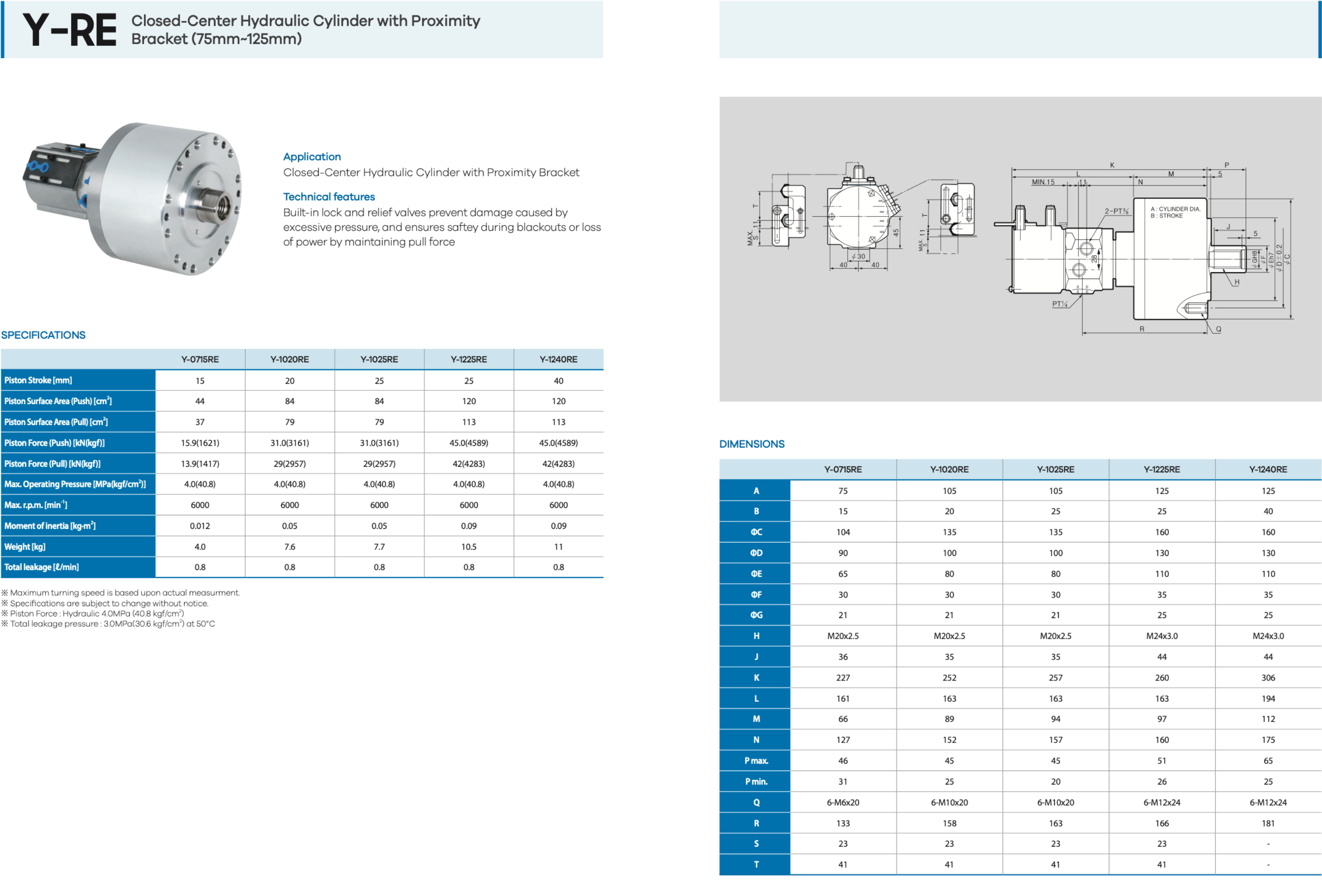

The Y-0715RE model features a closed-center hydraulic design with 15mm piston stroke, delivering 16.6kN push and 13.9kN pull piston force under a maximum operating pressure of 4.0 kgf/cm². Built for high-speed operation up to 6000 RPM, it ensures smooth and efficient performance in continuous machining applications. A built-in lock valve maintains thrust in the event of power failure or pressure loss, while the integrated relief valve protects the cylinder from overpressure and potential damage. Designed with mounting brackets for proximity switches, the Y-0715RE allows for precise position detection and automation compatibility. With low total leakage of just 0.8ℓ/min, it delivers dependable, high-performance operation in modern CNC setups.

!
