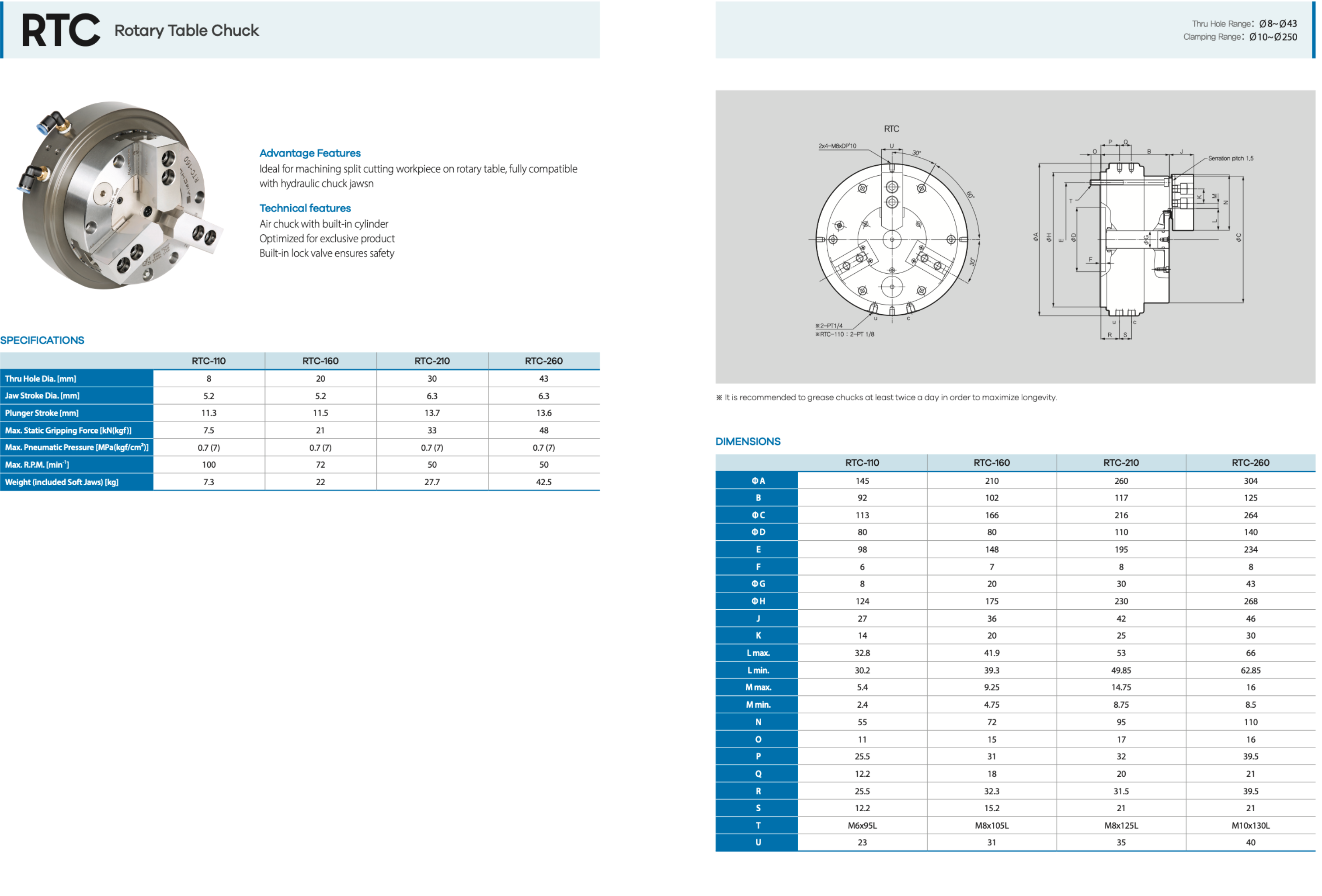

RTC-160

Application:

The Samchully RTC Series is designed specifically for rotary table applications requiring precise, automated workholding. Ideal for machining split or multi-sided workpieces, the RTC Series delivers consistent clamping force, repeatability, and safety in both automated and high-precision setups.

Product Features:

The RTC-160 is a 6" Pneumatic Rotary Table chuck with a Self-Contained Air Cylinder, eliminating the need for an external actuator and simplifying installation. Featuring a 20mm thru-hole and a 5.2mm jaw stroke diameter, it provides reliable clamping across a variety of part geometries. With a maximum static gripping force of 21kN at 100 PSI and a maximum speed of 72 RPM, the RTC-160 offers both power and precision for demanding machining environments. A built-in lock valve ensures safe operation by maintaining clamping pressure even in the event of air loss, while its compact design is fully compatible with hydraulic chuck jaws. Engineered for optimized performance in dedicated production setups, the RTC Series provides smooth, efficient, and secure workholding for advanced rotary table machining.
