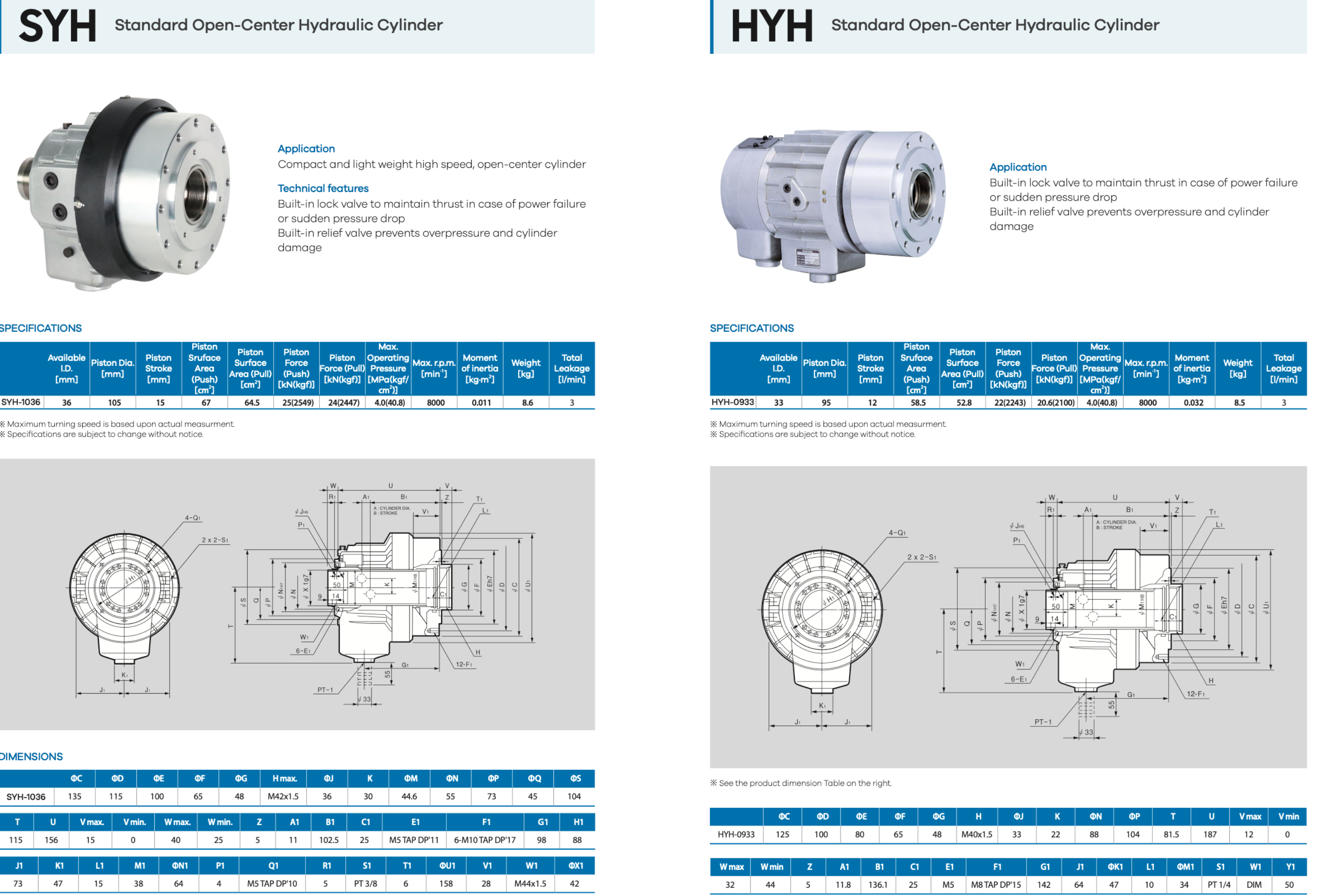

HYH Series Standard Open-Center Hydraulic Cylinder

Application:

The Samchully HYH Series hydraulic cylinders are designed for CNC lathes and turning centers requiring a compact, high-speed rear-mounting cylinder. The HYH-0933 model delivers reliable power transmission and smooth actuation, making it ideal for general-purpose, precision, and production machining where space efficiency and consistent clamping performance are critical.

Product Features:

The HYH-0933 features a short-body design that minimizes spindle overhang and maximizes machine rigidity. With a 12mm piston stroke and 33mm bore, it delivers powerful and stable actuation for consistent chuck performance. Built from high-strength alloy steel, the HYH-0933 ensures durability and long service life even in demanding high-speed environments. Its rear mounting configuration simplifies installation and maintenance, while balanced construction supports smooth, vibration-free rotation at elevated spindle speeds. Designed for precision, power, and reliability, the HYH Series provides optimal performance across a wide range of turning applications.
