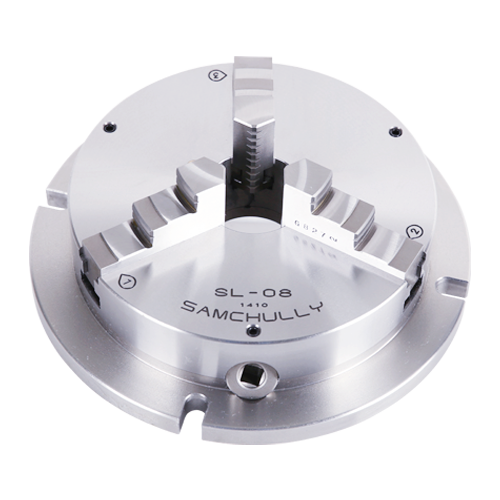

SL Series Stationary Scroll Chuck with Solid Jaws

Application:

Engineered for use in milling, drilling, and grinding applications, the Samchully SL Series delivers exceptional holding power and precision for stationary workholding setups such as rotary tables, machining centers, and specialized fixtures.

Product Features:

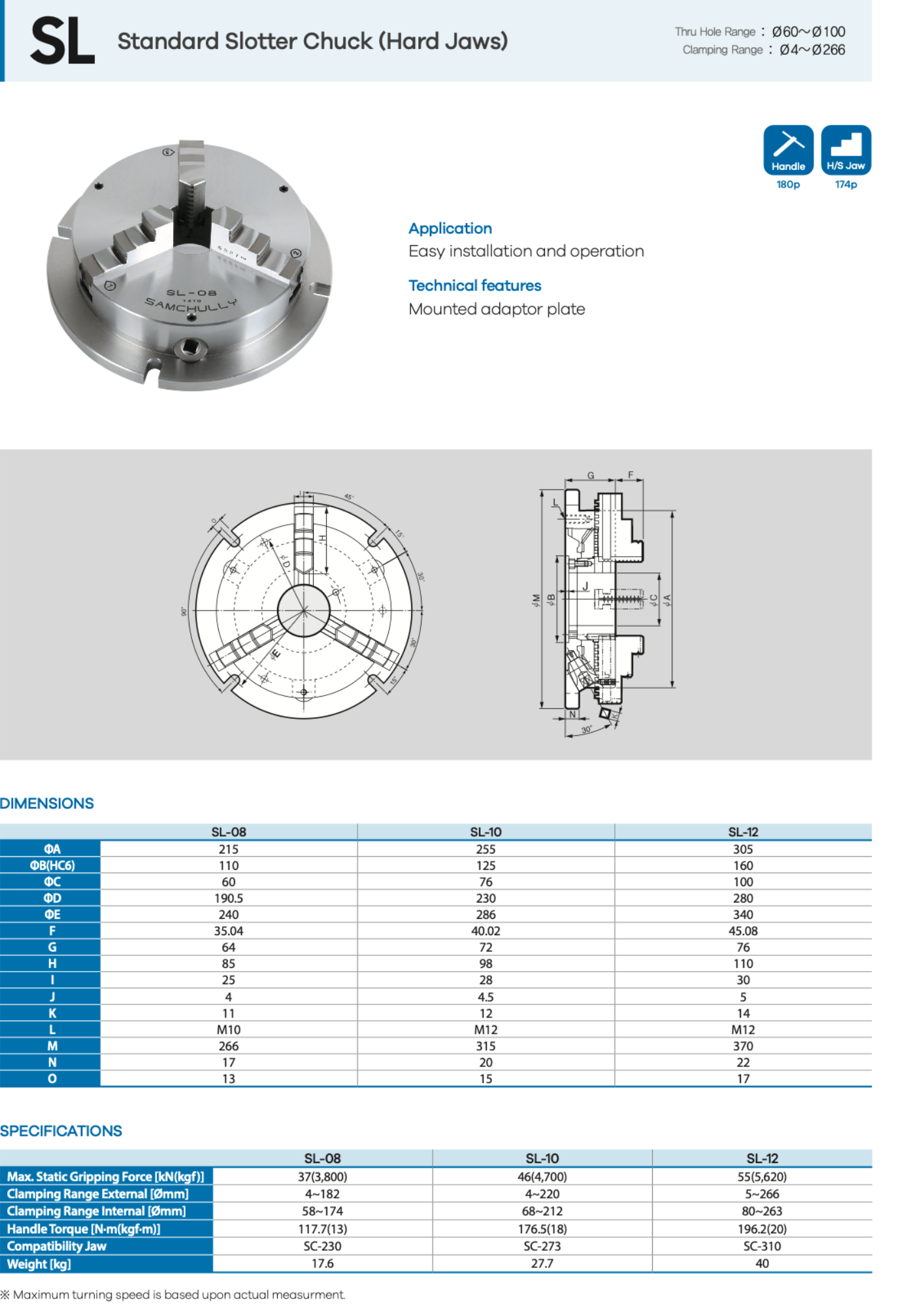

Featuring a robust 60mm through bore, the 8" SL Series stationary scroll chuck offers a versatile clamping range of Ø4–182mm externally and Ø58–174mm internally. With an impressive maximum static gripping force of 37 kN, it provides the rigidity and accuracy required for demanding machining operations. Built for durability and repeatable performance, the SL Series combines precision-ground components with Samchully’s renowned craftsmanship. Each chuck includes one set of internal and external hard jaws, giving operators the flexibility to handle a wide range of workpiece sizes with confidence and consistency.
