PAC-63325R [3/32x90]

PAC-63325R [3/32x90]

Price $52,563.50
Write a Review
SKU:
PAC-63325R [3/32x90]
Shipping:
Calculated at Checkout
Through-hole Dia. (mm):
325
Rapid:
16.9
Clamp:
8.5
Jaw Stroke Dia. (mm):
25.4
Operating Pressure (MPa):
0.2~0.8
Clamping Force (kN):
200
Weight (kg):
530
Max. r.pm.:
900
Series:
PAC
Size:
27"
Adding to cart… The item has been added

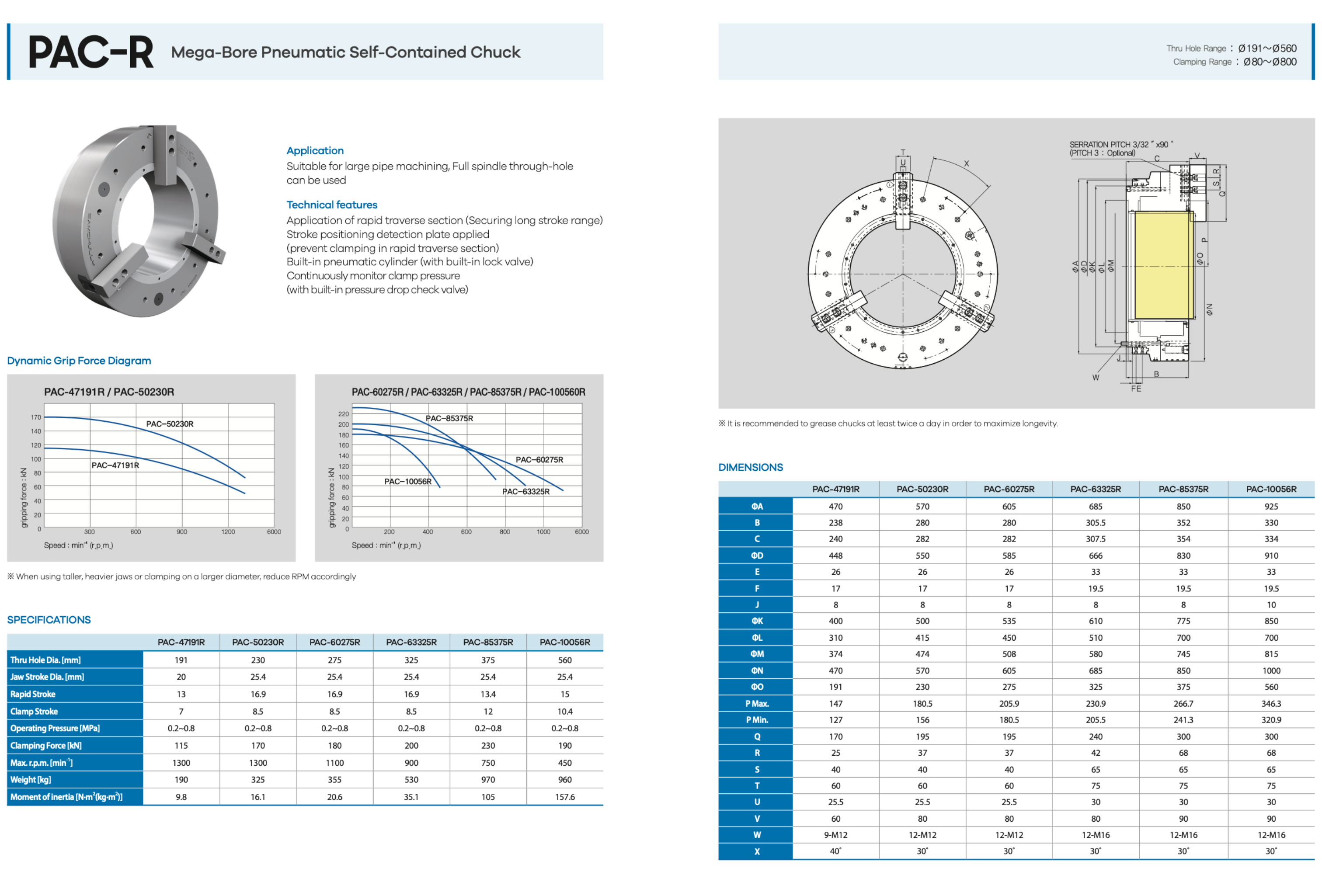

685mm Air Front Chuck – High-Performance Pneumatic Chuck for Large Pipe Machining

Engineered for heavy-duty applications, this 685mm air front chuck is purpose-built for large pipe machining, featuring a full spindle through-hole for maximum versatility. With a 325mm bore and 200kN grip force, it’s designed to handle oversized workpieces with precision, speed, and safety.

Application:

Ideal for large pipe and tubular work, especially where a full through-spindle design is required for efficient bar feeding and long-part machining.

Technical Features:

Long-stroke design with rapid traverse and clamping sections for efficient loading Stroke-position detection plate prevents clamping during rapid traverse Built-in pneumatic cylinder with integrated lock valve ensures consistent performance Built-in pressure drop check valve for continuous clamp pressure monitoring

This air front chuck offers the perfect combination of strength, control, and safety—optimized for modern turning centers and demanding production environments.

!
