QJC-212 [BLANK]

QJC-212 [BLANK]

Price $11,269.50
Write a Review
SKU:
QJC-212 [BLANK]
Shipping:
Calculated at Checkout
Includes:
Mounting Bolts; Blank Drawnut; Soft Top Jaws; Master Jaws; T-Nuts; Handle
Weight (kg):
66
Operating Cylinder:
SD-21510
Jaw Stroke Dia. (mm):
16
Plunger Stroke (mm):
28
Permissible Input Force [kN(kgf)]:
90(9177)
Max. Static Gripping Force [kN(kgf)]:
160(16315)
Max. r.pm.:
3600
Series:
QJC
Size:
12"

Back Ordered - Chat with an agent for updated lead time.

12" QJC Series Power Chuck | 3-Jaw, Quick Jaw Change Power Chuck

Application:
The QJC Series Power Chuck is purpose-built for fast jaw swaps, enabling shops to drastically reduce setup time and increase throughput. Ideal for high-mix, low-volume production environments or job shops that regularly change part sizes, this closed-center chuck allows for jaw changes in secondswithout removing the chuck or losing accuracy. Whether machining small batches or switching between part families, the QJC-212 helps keep spindles running longer and more efficiently.
Technical Features:
Equipped with Samchully Quick Jaw Change mechanism, the QJC-212 enables fast, repeatable jaw replacement without the need for realignment. Its closed-center body minimizes coolant and chip intrusion for long-term reliability. The 12" chuck provides a jaw stroke of up to 16mm and delivers a maximum clamping force of 160kN while supporting spindle speeds up to 3,600RPM. Manufactured from high-strength alloy steel, the QJC-212 integrates easily with standard hydraulic cylinders and is compatible with industry-standard soft and hard jaws.

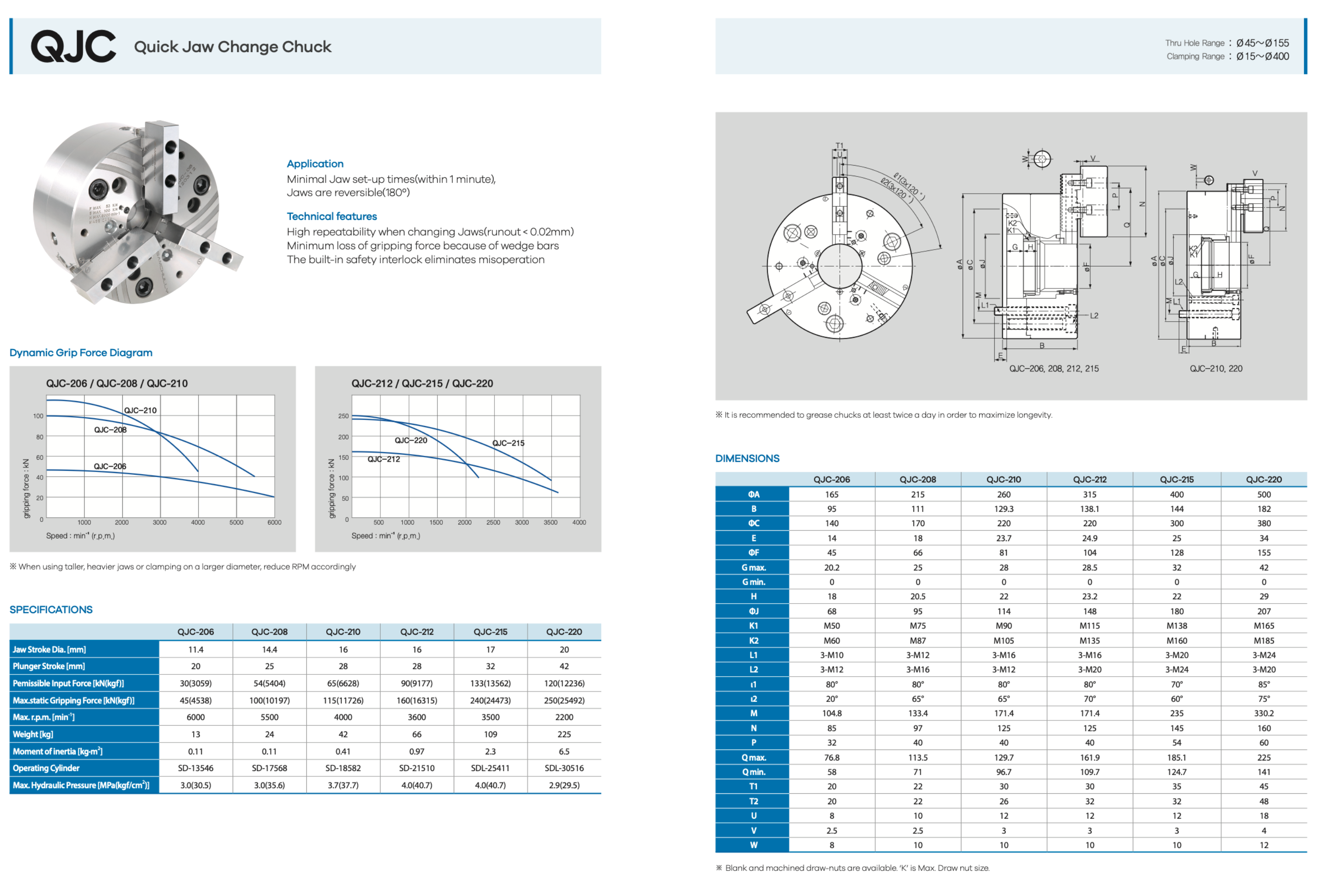

Download PDF | Download 3D | Download CAD



!
